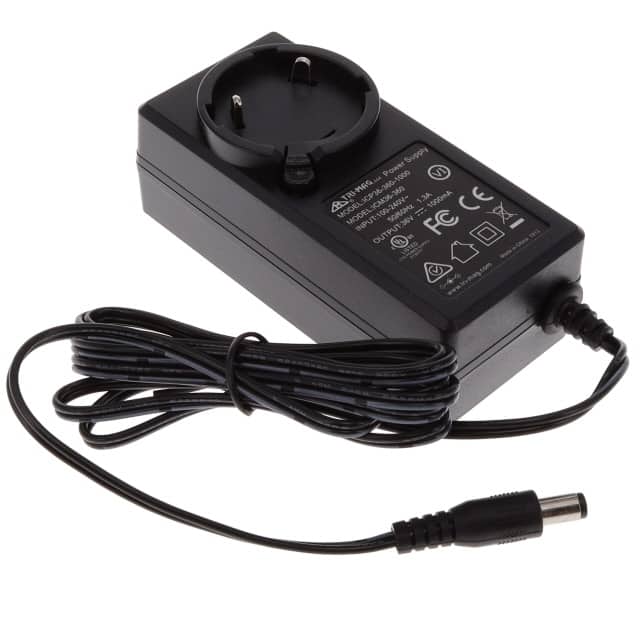

ICM36-360 The Tri-Mag, LLC ICM36-360 is a 36W AC/DC wall mount adapter providing a 36Vdc output at 1A. It meets Level VI efficiency standards and offers universal input voltage.
Mfr Part #:

ICM36-360

Mfr Name: Tri-Mag, LLC
Tri-Mag, LLC
The Tri-Mag, LLC ICM36-360 is a 36W AC/DC wall mount adapter providing a 36Vdc output at 1A. It meets Level VI efficiency standards and offers universal input voltage.
Stock on Request

ICM36-360 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Cord Length
Current
Efficiency
Form
Height
Input Connector
Input Frequency
Input Type
Input Voltage
Insulation Resistance
Length
No Load Power Consumption
Operating Temperature
Output Connector
Overload Protection
Polarization
Power (Watts)
Region Utilized
Standard Number
Voltage
Width
View Similar Products (0)

ICM36-360 Description

Short technical summary and product information.

The Tri-Mag, LLC ICM36-360 is a versatile AC/DC wall mount power adapter designed for ITE (Commercial) applications. It delivers a stable 36Vdc output with a maximum current of 1A, totaling 36W of power.



This adapter features a universal input voltage range of 90 to 264Vac at 47 to 63Hz, making it suitable for international use. It complies with DOE Level VI efficiency standards, ensuring energy savings and reduced heat generation. The unit incorporates essential protection features, including auto-recovery for overvoltage, overload, and short circuit conditions.



Designed for convenience, the ICM36-360 has a compact form factor with dimensions of 97.0mm x 45.0mm x 34.5mm. It utilizes a standard barrel plug output connector (2.1mm I.D. x 5.5mm O.D. x 9.5mm) with positive center polarization. The input connection is multi-blade, sold separately, allowing for regional adapter flexibility. The cord length is 1.50 meters (59 inches).



With an MTBF of 50,000 hours and operating temperature range of 0°C to 40°C, this adapter is built for reliability in commercial environments. It holds cUL, FCC, and UL approval agency certifications and adheres to the IEC 62368-1 standard.

ICM36-360 Quick Information

Product Type: AC DC Desktop, Wall Adapters
Series: ICM36/ICM48 Series
Canonical Name: ICM36-360 AC/DC Wall Mount Adapter
Subcategory: Wall Mount

ICM36-360 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ICM36-360 Features

  • 36W total output power.
  • Universal 90-264Vac input.
  • DOE Level VI efficiency rating.
  • Auto-recovery protection features.
  • Compact wall mount form factor.

ICM36-360 Applications

  • Ideal for powering commercial ITE equipment.
  • Suitable for portable devices requiring 36V DC input.
  • Used in LED lighting applications needing 36V supply.
  • Can power test and measurement instruments.
  • Applicable for industrial control systems with 36V DC.

ICM36-360 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the input voltage range of the ICM36-360?

The input voltage range is 90-264 Vac at 47-63 Hz.

What is the operating temperature range?

The operating temperature range is 0°C to 40°C.

What protections does the adapter include?

It includes overvoltage, overload, and short circuit protection, all with auto recovery.

What output voltage and current does it provide?

It provides 36V DC at 1A, 36W total.

What is the efficiency rating?

It meets Level VI efficiency with less than 0.1W no-load power consumption.

What certifications does the ICM36-360 hold?

It is cUL, FCC, and UL approved per safety standard 62368-1.

What is the output connector type?

The output connector is a 2.1mm ID x 5.5mm OD barrel plug with positive center polarity.
