| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Insulation Resistance | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Overload Protection | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage |

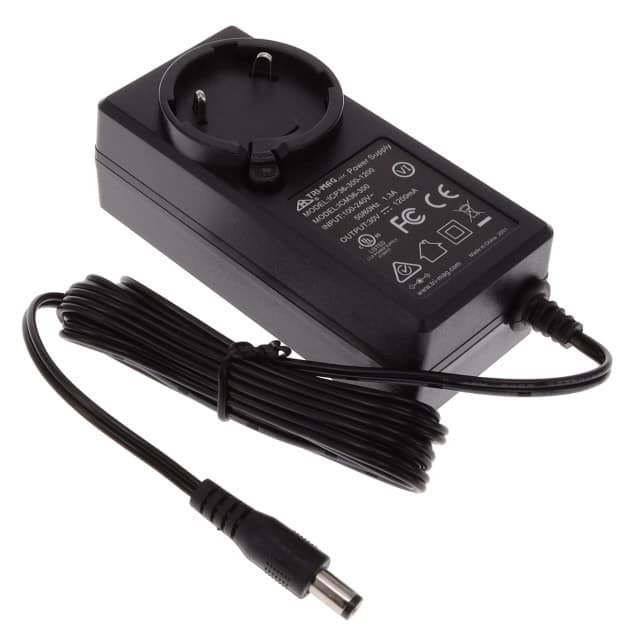

The Tri-Mag, LLC ICM36-300 is an AC/DC wall mount adapter designed for commercial ITE applications. It provides a stable 30V DC output at a maximum current of 1.2A, delivering a total power of 36W.
This adapter features universal input voltage compatibility, accepting a range of 90 to 264 VAC at 47 to 63 Hz. It is certified with UL, cUL, and FCC approvals, ensuring safety and reliability. The unit boasts DOE Level VI efficiency, contributing to energy savings.
Key specifications include a line regulation of ±1% and load regulation of ±5%. The output connector is a standard 2.1mm I.D. x 5.5mm O.D. barrel plug. The adapter operates within a temperature range of 0°C to 40°C and has a cord length of 59 inches (1.50m). Its compact dimensions are 97.0mm x 45.0mm x 34.5mm.
The ICM36-300 adapter provides a 30V DC output at a maximum current of 1.2A.
The ICM36-300 adapter has a power rating of 36W.
The ICM36-300 supports a universal input voltage range of 90 to 264 VAC.
The ICM36-300 meets the DOE Level VI efficiency rating.
The ICM36-300 is approved by cUL, FCC, and UL.
The ICM36-300 operates within a temperature range of 0°C to 40°C.
