| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Insulation Resistance | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Overload Protection | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

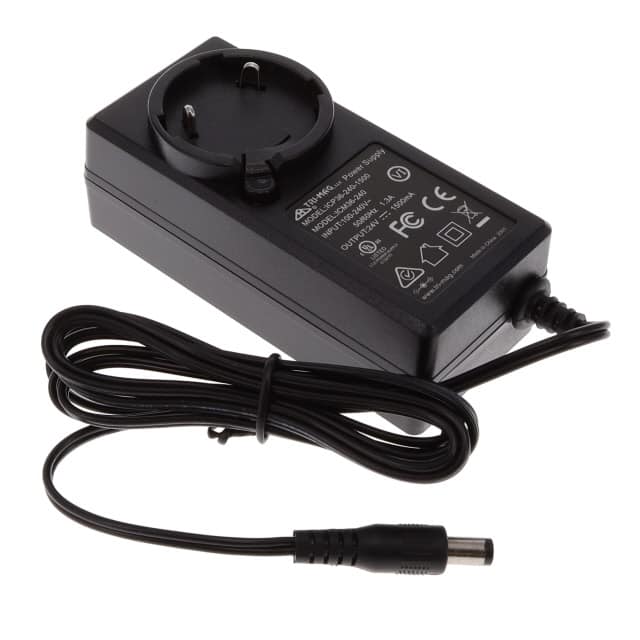

The Tri-Mag, LLC ICM36-240 is a versatile AC/DC wall mount adapter designed for commercial ITE applications. It delivers a stable 24V output with a maximum current of 1.5A, providing up to 36W of power.
This adapter features universal input voltage compatibility, accepting a range of 90 to 264 VAC at 47/63 Hz, making it suitable for international use. It is certified to standard IEC 62368-1 and includes essential safety features such as auto-recovery for overvoltage, overload, and short circuit conditions.
The unit is designed in a compact wall mount (Class II) form factor with a cord length of 59 inches (1.50m). The output connector is a standard barrel plug (2.1mm I.D. x 5.5mm O.D. x 9.5mm) with a positive center polarization. It operates within a temperature range of 0°C to 40°C and meets DOE Level VI efficiency requirements, ensuring energy savings and reduced heat generation.
The ICM36-240 provides an output voltage of 24V at a current of 1.5A.
The ICM36-240 adapter has a power rating of 36W.
The ICM36-240 supports a universal input voltage range of 90 to 264 VAC.
The ICM36-240 meets the DOE Level VI efficiency standard.
The ICM36-240 operates within a temperature range of 0°C to 40°C.
The ICM36-240 uses a Barrel Plug output connector with dimensions 2.1mm I.D. x 5.5mm O.D. x 9.5mm.
Yes, the ICM36-240 features auto-recovery for overload and short circuit protection.
