| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Insulation Resistance | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Overload Protection | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage |

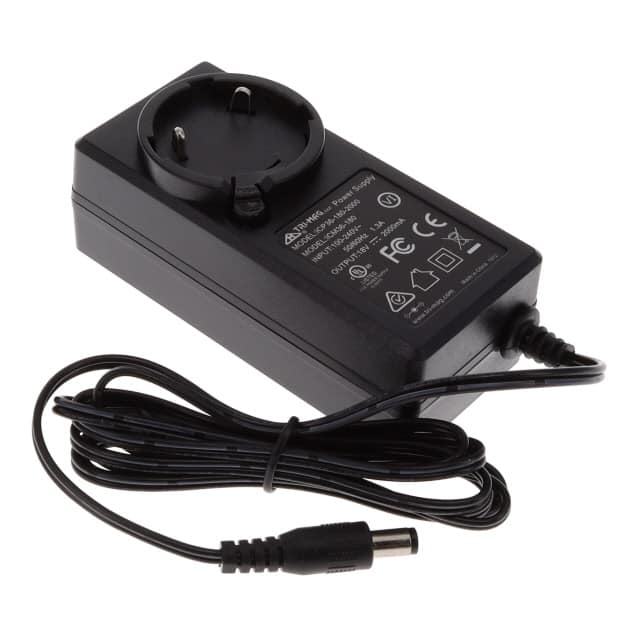

The Tri-Mag, LLC ICM36-180 is an AC/DC wall mount adapter designed for ITE (Commercial) applications. It provides a stable 18V output at a maximum current of 2A, delivering up to 36W of power.
This adapter features universal input voltage compatibility, accepting a range of 90 to 264 Vac at 47/63 Hz. It is certified with UL/cUL safety approvals and complies with the DOE Level VI efficiency rating, ensuring energy efficiency.
The ICM36-180 utilizes a positive center barrel plug output connector (2.1mm I.D. x 5.5mm O.D. x 9.5mm) and a multi-blade input connector, sold separately. Its compact dimensions of 97.0mm x 45.0mm x 34.5mm make it suitable for various installations. The adapter includes auto-recovery protection for overvoltage, overload, and short circuits, along with an MTBF rating of 50,000 hours at 25°C.
The ICM36-180 provides an 18V output voltage at a maximum current of 2A.
The ICM36-180 adapter has a power rating of 36W.
The adapter accepts a universal input voltage range of 90 to 264 Vac and a frequency range of 47 to 63 Hz.
Yes, the ICM36-180 meets the DOE Level VI efficiency rating.
The output connector is a Barrel Plug with a 2.1mm I.D. x 5.5mm O.D. x 9.5mm size.
The operating temperature range for this adapter is 0°C to 40°C.
The ICM36-180 includes auto-recovery protection for overvoltage, overload, and short circuit conditions.
