| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Insulation Resistance | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Overload Protection | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

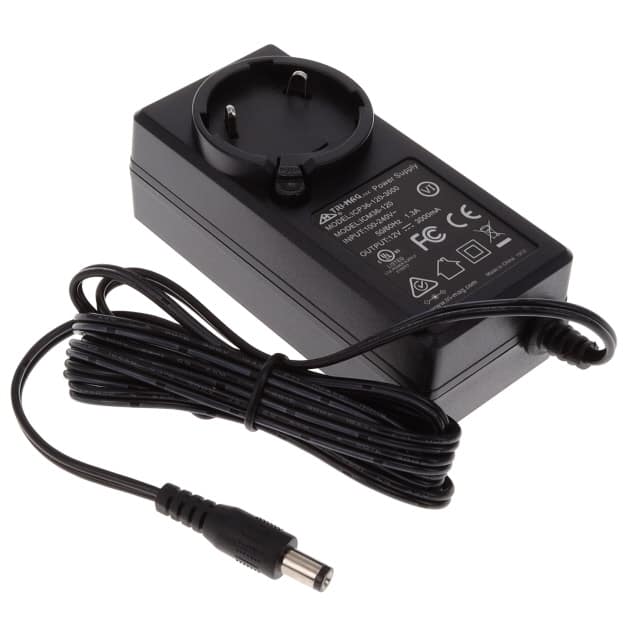

The Tri-Mag, LLC ICM36-120 is a versatile AC/DC wall mount adapter designed for ITE (Commercial) applications. It delivers a stable 12V output with a maximum current of 3A, providing up to 36W of power.
This adapter boasts a universal input voltage range of 90-264Vac and operates at frequencies from 47-63Hz, making it suitable for international use. It meets DOE Level VI efficiency standards, ensuring energy savings. The unit includes essential protection features such as overvoltage, overload, and short circuit protection, all with auto-recovery.
Designed as a Class II wall mount unit, the ICM36-120 features a compact form factor with dimensions of 97.0mm x 45.0mm x 34.5mm. It utilizes a standard 2.1mm I.D. x 5.5mm O.D. barrel plug output connector with a positive center and a cord length of 1.50m. The input connection is a multi-blade type, sold separately, allowing for regional adaptability.
With cUL, FCC, and UL approval agencies, and compliance with standard 62368-1, this adapter is built for reliability and safety. It operates within a temperature range of 0°C to 40°C and has an MTBF of 50,000 hours.
The ICM36-120 adapter provides a 12V output voltage at a maximum current of 3A.
The ICM36-120 adapter has a power rating of 36W.
The ICM36-120 adapter accepts a universal input voltage range of 90 to 264 Vac.
Yes, the ICM36-120 adapter meets the DOE Level VI efficiency rating.
The ICM36-120 adapter includes auto-recovery protection for overvoltage, overload, and short circuit conditions.
The ICM36-120 adapter can operate within a temperature range of 0°C to 40°C.
The ICM36-120 adapter uses a barrel plug connector with dimensions of 2.1mm I.D. x 5.5mm O.D. x 9.5mm.
