| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Insulation Resistance | |
| Mounting Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Overload Protection | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Storage Temperature | |
| Voltage | |
| Weight |

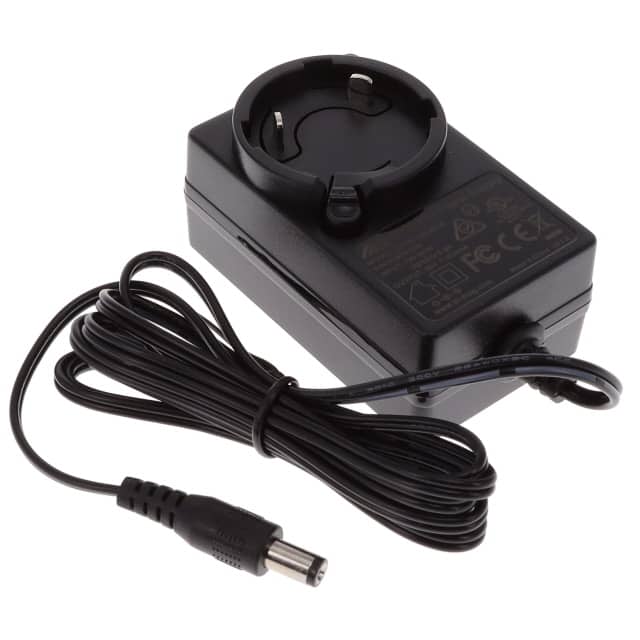

The Tri-Mag, LLC ICM30-360 is an AC/DC wall adapter designed for ITE (Commercial) applications. It provides a stable 36Vdc output at up to 30W of power, with an output current of 830mA.
This adapter operates with a universal input voltage range of 90 to 264Vac at 47 to 63Hz, making it suitable for international use. It meets DOE Level VI efficiency standards, ensuring energy savings. The unit includes auto recovery for overvoltage, overload, and short circuit protection, enhancing reliability.
Key specifications include a line regulation of ±1% and a load regulation of ±5%, with a maximum ripple and noise of 100mVp-p. The operating temperature range is 0°C to 40°C. The adapter has a compact size of 72.1mm x 43.2mm x 30.5mm and features a standard 5.5 x 2.1 x 9.5mm barrel plug output connector with a positive center pin.
90-264Vac.
36Vdc at 830mA.
0°C to 40°C.
Barrel plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm, positive center.
UL 62368-1 and cUL 62368-1.
DOE Level VI compliant.
72.1mm x 43.2mm x 30.5mm (2.84" x 1.70" x 1.20").
