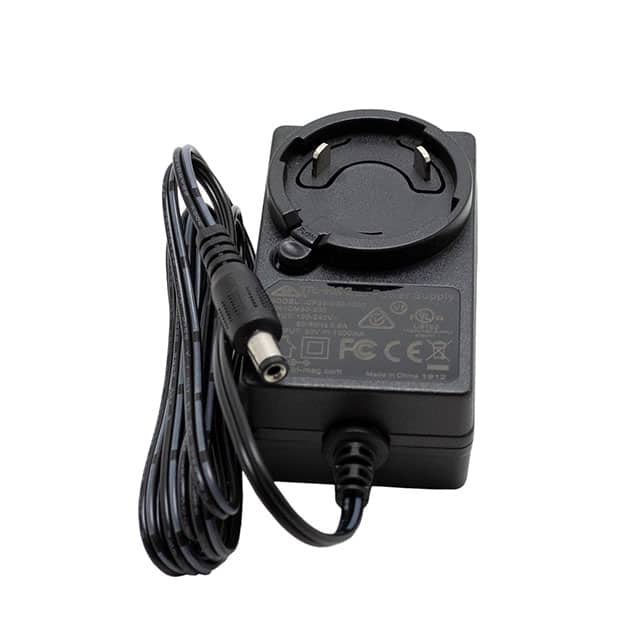

The Tri-Mag, LLC ICM30-300 is a versatile 30W AC/DC wall mount power adapter designed for Information Technology Equipment (ITE) applications. It provides a stable 30Vdc output at 1A, meeting the demands of various electronic devices.
This adapter features a universal input voltage range of 90-264Vac and operates at frequencies between 47-63Hz, making it suitable for global use. It boasts DOE Level VI efficiency, ensuring reduced energy consumption and heat generation. The compact, wall-mount form factor (Class II) makes it convenient for space-constrained environments.
Key electrical specifications include ±1% line regulation and ±5% load regulation, ensuring consistent power delivery. It also incorporates auto-recovery for overvoltage, overload, and short circuit protection, enhancing reliability and safety. The output connector is a standard 5.5mm x 2.1mm barrel plug with a 9.5mm length and positive center polarization.
The ICM30-300 provides a 30Vdc output at 1A.
The power rating for the ICM30-300 is 30W.
The ICM30-300 supports a universal input voltage range of 90-264Vac.
The ICM30-300 has a DOE Level VI efficiency rating.
The operating temperature range for the ICM30-300 is 0°C to 40°C.
The ICM30-300 uses a barrel plug with a 2.1mm inner diameter, 5.5mm outer diameter, and 9.5mm length, with positive center polarization.
