| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Current | |
| Output Voltage | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

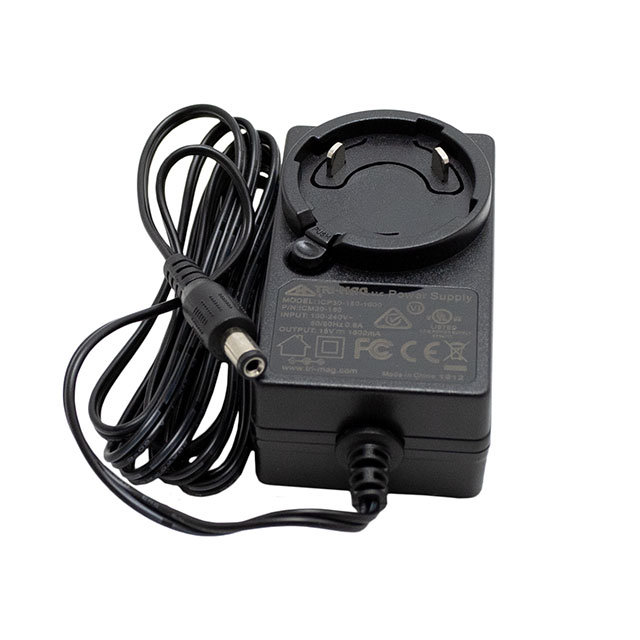

The ICM30-180 from Tri-Mag, LLC is a 30-watt AC/DC external wall mount adapter designed for ITE (Commercial) applications. It features an 18V output voltage and a maximum output current of 1.67A.
This adapter operates within a universal input voltage range of 90 to 264 VAC and complies with the IEC 62368-1 standard. It boasts Level VI efficiency and a low no-load power consumption of 100mW maximum. The unit is approved by cUL, FCC, and UL.
The ICM30-180 has a compact form factor, measuring 72.1mm x 43.2mm x 30.5mm. It utilizes a Barrel Plug output connector (2.1mm I.D. x 5.5mm O.D. x 9.5mm) and a NEMA 1-15P input connector, with multi-blades sold separately. The cord length is 1.50 meters (59 inches). The operating temperature range is 0°C to 40°C.
The output voltage of the ICM30-180 adapter is 18V.
The maximum output current for the ICM30-180 is 1.67A.
The power rating of the ICM30-180 adapter is 30W.
The input voltage range for the ICM30-180 is 90 to 264 VAC.
The operating temperature range for the ICM30-180 is 0°C to 40°C.
The dimensions of the ICM30-180 adapter are 72.1mm x 43.2mm x 30.5mm.
The output connector type is a Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm.
