| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Industrial Grade | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Insulation Resistance | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Storage Temperature | |
| Voltage | |
| Weight |

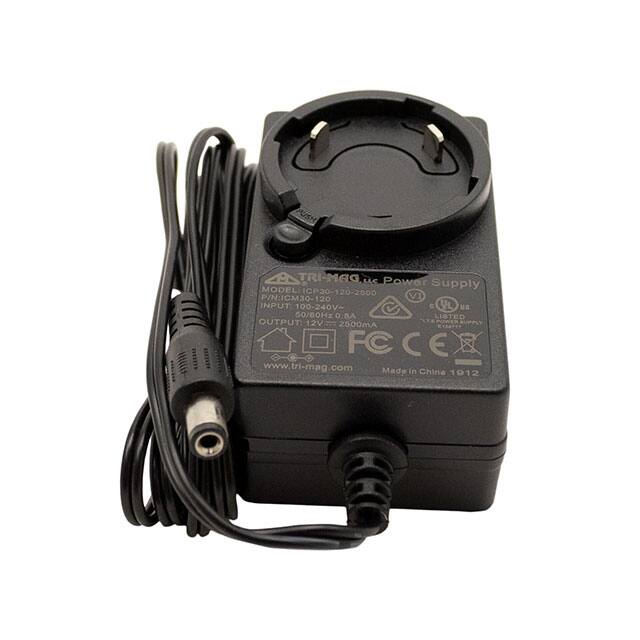

The Tri-Mag, LLC ICM30-120 is a versatile 30W AC/DC wall mount adapter designed for Information Technology Equipment (ITE) applications. It offers a stable 12V DC output with a 2.5A current rating, suitable for powering various devices.
This adapter operates with a universal input voltage range of 90 to 264 Vac and meets DOE Level VI efficiency standards, ensuring energy savings and reduced heat generation. Its compact and lightweight design makes it ideal for portable equipment and mobile device charging.
The ICM30-120 features a standard 5.5mm x 2.1mm x 9.5mm corded output connector with positive center polarization. It supports international use with interchangeable plug adapters (sold separately) and includes essential safety approvals such as UL, cUL, and FCC.
Key specifications include ±1% line regulation, ±5% load regulation, and a maximum ripple and noise of 100mVp-p. The operating temperature range is 0°C to 40°C, and it boasts an MTBF of 50,000 hours.
The input voltage range is 90-264 Vac at 47-63 Hz.
The output is 12Vdc at 2.5A, providing 30W of power.
The adapter is compliant with Level VI efficiency standards.
It has safety approvals from cUL, FCC, and UL, compliant with standard 62368-1.
The operating temperature range is 0°C to 40°C.
The output connector is a 2.1mm I.D. x 5.5mm O.D. barrel plug with positive center, on a 1.5m cord. The input connector is a NEMA 1-15P multi-blade plug (sold separately).
The MTBF is 50,000 hours per MIL-HDBK-217F at +25°C.
