| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Standard Number | |
| Voltage | |
| Width |

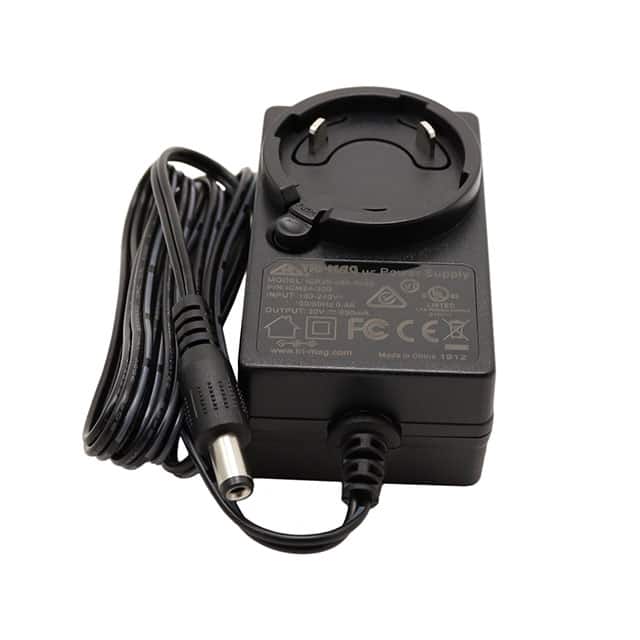

The Tri-Mag, LLC ICM24-300 is an AC/DC wall mount adapter with a power rating of 24W and an output voltage of 30V. This adapter meets Level VI efficiency standards, ensuring energy savings.
Designed for commercial ITE applications, it operates within a temperature range of 0°C to 40°C. The adapter features a fixed blade input connector (NEMA 1-15P, Multi-Blade sold separately) and a standard barrel plug output connector (2.1mm I.D. x 5.5mm O.D. x 9.5mm). Its dimensions are 72.1mm x 43.2mm x 30.5mm, and it has a cord length of 1.50m.
Compliance includes RoHS3, REACH Unaffected, and MSL Level 1. The approval agencies for this adapter are cUL, FCC, and UL, adhering to the standard 62368-1.
The adapter provides 30V DC at 800mA (24W).
The input voltage range is 85 to 264 VAC.
The operating temperature range is 0°C to 40°C.
It has a barrel plug with 2.1mm inner diameter and 5.5mm outer diameter, positive center polarity.
It meets Level VI efficiency standards with no-load power consumption less than 100mW.
It is approved to cUL, FCC, and UL standards, compliant with 62368-1.
It is a wall mount (Class II) adapter.
