| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Weight | |
| Width |

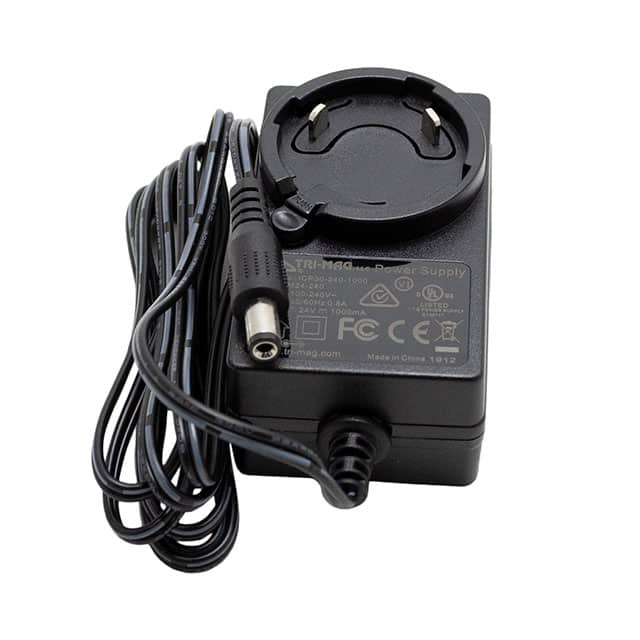

The Tri-Mag, LLC ICM24-240 is a 24W AC/DC wall mount adapter designed for ITE (Commercial) applications. It features a universal input voltage range of 90-264Vac and operates at frequencies from 47-63Hz. The adapter provides a stable 24Vdc output at 1A, with line regulation of ±1% and load regulation of ±5%.
This adapter meets DOE Level VI efficiency standards, ensuring energy savings. It has a compact, lightweight design with dimensions of 71.2 x 43.2 x 30.5 mm. The output connector is a standard 5.5 x 2.1 x 9.5mm barrel plug with positive center polarization. Safety approvals include UL/cUL 62368-1 and FCC compliance.
Key specifications include a maximum ripple and noise of 100mVp-p and a no-load power consumption of less than 0.1W. The operating temperature range is 0°C to 40°C. The ICM24-240 is suitable for powering and charging portable equipment, mobile devices, and Bluetooth devices.
The input voltage range is 90-264Vac and the input frequency is 47-63Hz.
The output is 24Vdc at 1A, with a total output power of 24W.
The operating temperature range is 0°C to 40°C.
The adapter uses wall mount construction and measures 71.2 x 43.2 x 30.5mm, with a weight of approximately 140g.
The output connector is a barrel plug with 5.5mm O.D., 2.1mm I.D., and 9.5mm length, center positive.
The adapter meets Level VI efficiency and has a maximum no-load power consumption of less than 0.1W.
The safety approval is UL/cUL 62368-1 and the EMC approval is FCC.
