| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Storage Temperature | |
| Voltage | |
| Weight | |
| Width |

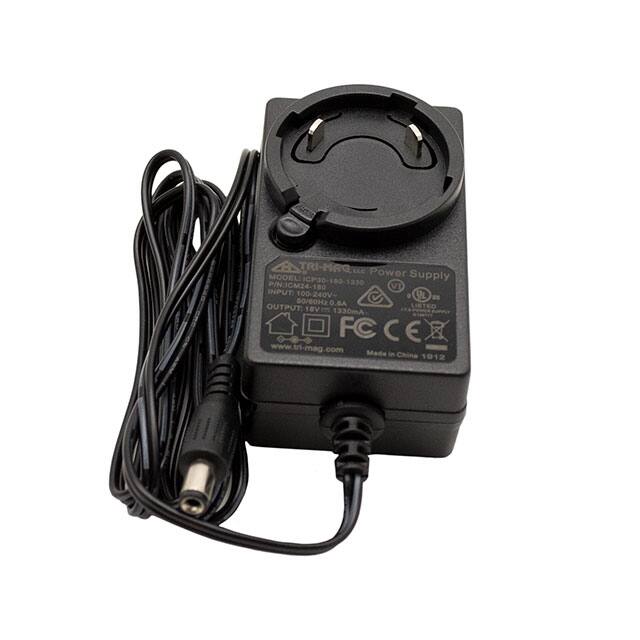

The Tri-Mag, LLC ICM24-180 is an AC/DC wall mount adapter designed for ITE (Commercial) applications. It provides a stable 18V output at 1.3A, delivering up to 23W of power.
This adapter operates with a universal input voltage range of 90 to 264Vac and a frequency of 47 to 63Hz, making it suitable for international use. It meets DOE Level VI efficiency standards, ensuring energy savings and reduced heat generation. The device features a compact, wall-mount form factor (Class II) with a standard 5.5mm x 2.1mm x 9.5mm barrel plug output connector and positive center polarization.
Key specifications include ±1% line regulation and ±5% load regulation, with a maximum ripple and noise of 100mVp-p. The operating temperature range is from 0°C to 40°C, and it has a low no-load power consumption of less than 0.1W. The adapter is safety approved by UL, cUL, and FCC.
With its reliable performance, international compatibility, and energy-efficient design, the ICM24-180 is well-suited for powering various electronic devices and equipment.
90-264Vac, 47-63Hz.
18Vdc at 1.3A, 23W.
0°C to 40°C.
Level VI with no-load power consumption less than 0.1W.
2.1mm I.D. x 5.5mm O.D. barrel plug, positive center, 1.5m cord.
71.2 x 43.2 x 30.5 mm (2.80 x 1.70 x 1.20 inches). Weight approx 140g.
50,000 hours per MIL-HDBK-217F at +25°C.
