| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Industrial Grade | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| Military Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Storage Temperature | |
| Voltage | |
| Width |

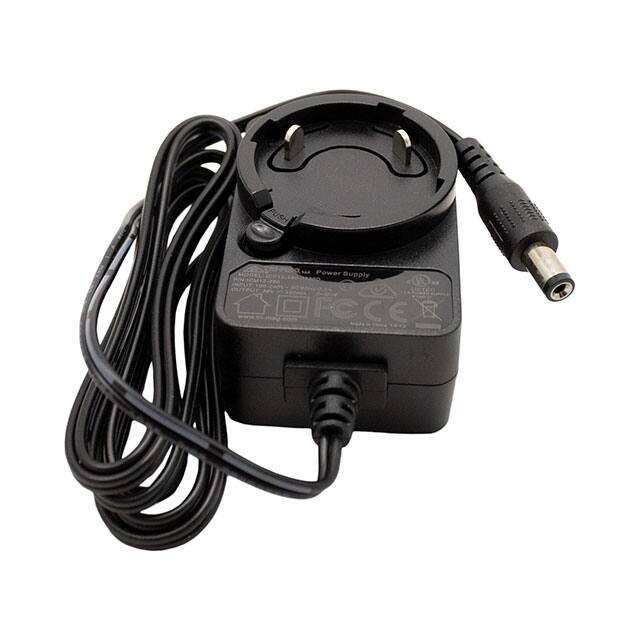

The Tri-Mag, LLC ICM12-360 is an AC/DC wall mount adapter that delivers a regulated 36Vdc output at 300mA with a maximum power of 11W. It accepts a universal AC input from 90 to 264Vac at 47 to 63Hz, making it suitable for global applications.
This adapter achieves Level VI efficiency and has a no-load power consumption of less than 100mW. Output regulation is maintained with ±1% line regulation and ±5% load regulation, while ripple and noise are limited to 100mVp-p maximum.
The ICM12-360 is designed for reliable operation in ambient temperatures from 0°C to 40°C and can be stored between -20°C and +80°C. It operates in non-condensing humidity conditions from 5% to 95% RH. The unit has a calculated MTBF of 50,000 hours at +25°C per MIL-HDBK-217F.
The ICM12-360 accepts a universal AC input voltage from 90 to 264Vac.
It provides a 36Vdc output at 300mA with a maximum power of 11W.
The operating temperature range is 0°C to 40°C.
The ICM12-360 meets Level VI efficiency standards.
The no-load power consumption is 100mW maximum.
The MTBF is 50,000 hours calculated to MIL-HDBK-217F at +25°C.
