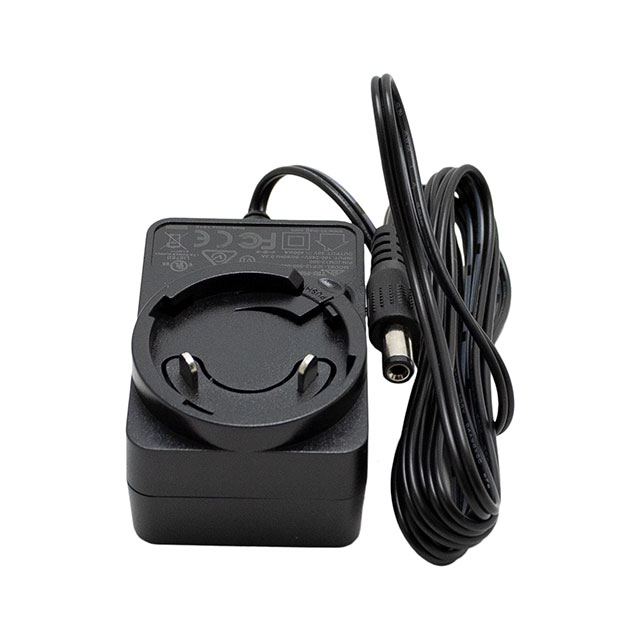

ICM12-300 The Tri-Mag, LLC ICM12-300 is a 12W AC/DC wall mount adapter with a 30V output. It meets Level VI efficiency standards and is designed for ITE (Commercial) applications.
Mfr Part #:

ICM12-300

Mfr Name: Tri-Mag, LLC
Tri-Mag, LLC
The Tri-Mag, LLC ICM12-300 is a 12W AC/DC wall mount adapter with a 30V output. It meets Level VI efficiency standards and is designed for ITE (Commercial) applications.
Stock on Request

ICM12-300 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Cord Length
Current
Efficiency
Form
Height
Input Connector
Input Frequency
Input Type
Input Voltage
Insulation Resistance
Length
No Load Power Consumption
Operating Temperature
Output Connector
Overload Protection
Polarization
Power (Watts)
Region Utilized
Standard Number
Storage Temperature
Voltage
Width
View Similar Products (0)

ICM12-300 Description

Short technical summary and product information.

The Tri-Mag, LLC ICM12-300 is a versatile 12W AC/DC wall mount adapter designed for ITE (Commercial) applications. It features a universal input voltage range of 90-264Vac and operates at frequencies between 47-63Hz, making it suitable for international use.



The adapter provides a stable 30Vdc output current of 400mA, with a maximum power rating of 12W. It boasts Level VI efficiency, ensuring reduced energy consumption. Key electrical protections include auto-recovery for overvoltage, overload, and short circuit conditions.



Mechanically, the ICM12-300 has a compact wall mount (Class II) form factor with dimensions of 59.0mm x 40.9mm x 31.5mm. It utilizes a NEMA 1-15P input connector and a standard barrel plug output connector (2.1mm I.D. x 5.5mm O.D. x 9.5mm) with a positive center polarization. The cord length is 59 inches (1.50m).



Environmental specifications include an operating temperature range of 0°C to 40°C and operating humidity of 5% to 95% RH (non-condensing). The adapter complies with standard number 62368-1 and carries cUL, FCC, and UL approval agencies.

ICM12-300 Quick Information

Product Type: AC DC Desktop, Wall Adapter
Series: ICM12
Canonical Name: Tri-Mag, LLC ICM12-300 AC/DC Wall Mount Adapter
Subcategory: Power Supply

ICM12-300 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ICM12-300 Features

  • 12W AC/DC wall mount adapter
  • 30Vdc output voltage
  • Level VI efficiency rating
  • Universal input voltage range
  • ITE (Commercial) application ready

ICM12-300 Applications

  • Ideal for commercial ITE equipment.
  • Used in point-of-sale terminals.
  • Powers low-power test instruments.
  • Suitable for networking devices.

ICM12-300 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the output voltage and current for the ICM12-300?

The ICM12-300 provides a 30Vdc output voltage at 400mA.

What is the power rating of the ICM12-300 adapter?

The ICM12-300 has a power rating of 12W.

Does the ICM12-300 meet energy efficiency standards?

Yes, the ICM12-300 meets Level VI efficiency standards.

What is the operating temperature range for this adapter?

The operating temperature range for the ICM12-300 is 0°C to 40°C.

What type of input connector does the ICM12-300 use?

The ICM12-300 uses a NEMA 1-15P input connector, with multi-blade options sold separately.

What are the dimensions of the ICM12-300 adapter?

The dimensions of the ICM12-300 are 59.0mm x 40.9mm x 31.5mm.

What safety standards does the ICM12-300 comply with?

The ICM12-300 complies with standard number 62368-1 and has cUL, FCC, and UL approval agencies.
