| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

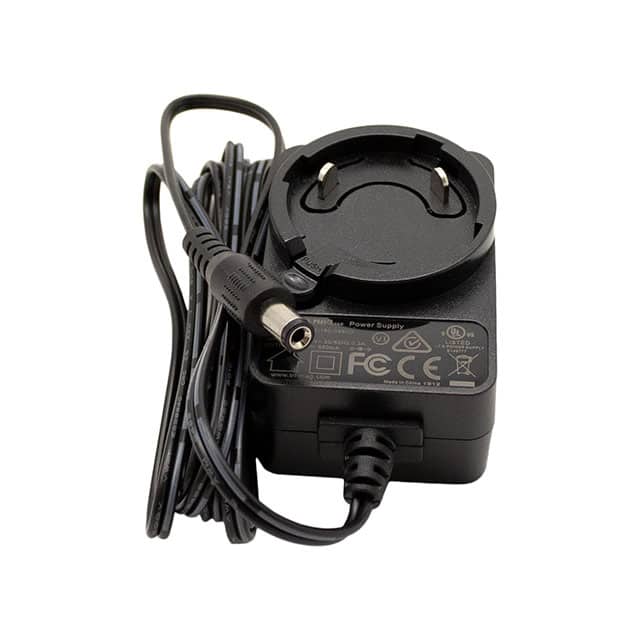

The Tri-Mag, LLC ICM12-180 is a 13W AC/DC wall mount adapter designed for ITE (Commercial) applications. It features a universal input voltage range of 90 to 264 Vac and a frequency of 47 to 63 Hz, making it suitable for international use.
The adapter delivers a stable 18Vdc output at a maximum current of 700mA. It boasts a Level VI efficiency rating, ensuring reduced energy consumption. The output is delivered via a standard barrel plug connector (2.1mm I.D. x 5.5mm O.D. x 9.5mm).
Key specifications include a line regulation of ±1% and a load regulation of ±5%. The ripple and noise are kept to a maximum of 100mVp-p. The operating temperature range is from 0°C to 40°C. The adapter's dimensions are 59.0mm x 40.9mm x 31.5mm, and it utilizes a NEMA 1-15P input connector, with multi-blades sold separately.
Compliance includes UL, cUL, and FCC approvals, adhering to the IEC 62368-1 standard. The RoHS status is RoHS3 Compliant.
The input voltage range is 90 to 264 Vac at 47-63 Hz.
Output is 18 Vdc at 700 mA (13W).
It is a wall mount (Class II) adapter packaged in a box.
The operating temperature range is 0°C to 40°C.
It uses a barrel plug with 2.1mm inner diameter and 5.5mm outer diameter.
It meets Level VI efficiency with no-load power consumption of 100mW maximum.
It is designed to comply with safety standard 62368-1.
