| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Storage Temperature | |
| Voltage | |
| Width |

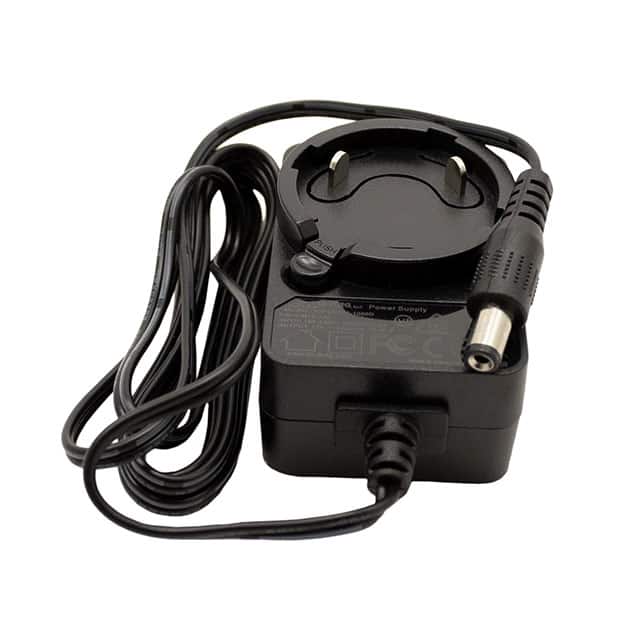

The Tri-Mag, LLC ICM12-120 is a versatile 12W AC/DC wall mount power adapter suitable for ITE (Commercial) applications. It features a universal input voltage range of 90 to 264Vac and operates at frequencies between 47 and 63 Hz, ensuring global compatibility.
This adapter delivers a stable 12Vdc output with a maximum current of 1A. It boasts a high efficiency rating of Level VI, minimizing energy waste. The adapter includes essential protections such as overvoltage, overload, and short circuit protection, all with auto-recovery.
Designed for convenience, the ICM12-120 has a compact form factor with dimensions of 59.0mm x 40.9mm x 31.5mm. It utilizes a NEMA 1-15P input connector and a standard 2.1mm I.D. x 5.5mm O.D. barrel plug output connector with positive center polarization. The cord length is approximately 1.50 meters (59 inches).
Safety and compliance are met with cUL, FCC, and UL approvals, adhering to standard 60950-1. The operating temperature range is from 0°C to 40°C, and it is designed for wall mount (Class II) installations.
The ICM12-120 provides a 12Vdc output voltage at a maximum current of 1A.
The adapter accepts a universal input voltage range of 90 to 264 Vac.
The power rating for this adapter is 12 Watts.
The adapter meets the DOE Level VI efficiency rating.
The operating temperature range is from 0°C to 40°C.
It features a barrel plug with dimensions of 2.1mm I.D. x 5.5mm O.D. x 9.5mm.
