| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Standard Number | |
| Voltage | |
| Width |

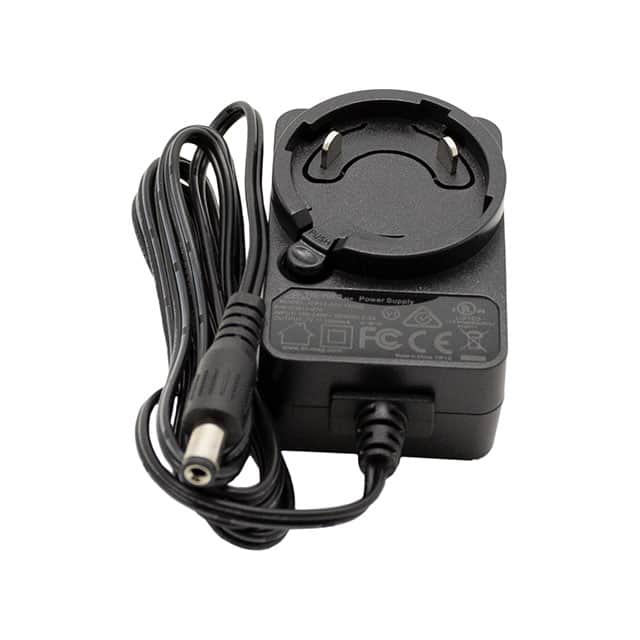

The Tri-Mag, LLC ICM12-070 is an AC/DC wall mount adapter designed for ITE (Commercial) applications. It provides a stable output voltage of 7V at a maximum current of 1.3A, delivering a total power of 9.1W.
This adapter features a universal input voltage range of 90 to 264 Vac and operates at frequencies between 47 and 63 Hz. It meets DOE Level VI efficiency standards, ensuring energy-conscious operation. The device is approved by UL, cUL, and FCC for safety and electromagnetic compatibility.
With a compact wall mount form factor (Class II), it is suitable for various installations. The output is delivered via a 2.1mm I.D. x 5.5mm O.D. x 9.5mm barrel plug with positive center polarization. The adapter operates within a temperature range of 0°C to 40°C and has a low no-load power consumption of 100mW maximum. The cord length is 1.50 meters.
The input voltage range is 90 to 264 Vac.
The output is 7V DC at 1.3A, providing 9.1W of power.
The operating temperature range is 0°C to 40°C.
It meets Level VI efficiency.
It has UL/cUL safety approvals and is designed to meet 60601-1 medical standard.
It uses a 2.1mm I.D. x 5.5mm O.D. barrel plug with positive center polarity.
The unit is packaged in bulk.
