| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Storage Temperature | |
| Voltage | |
| Width |

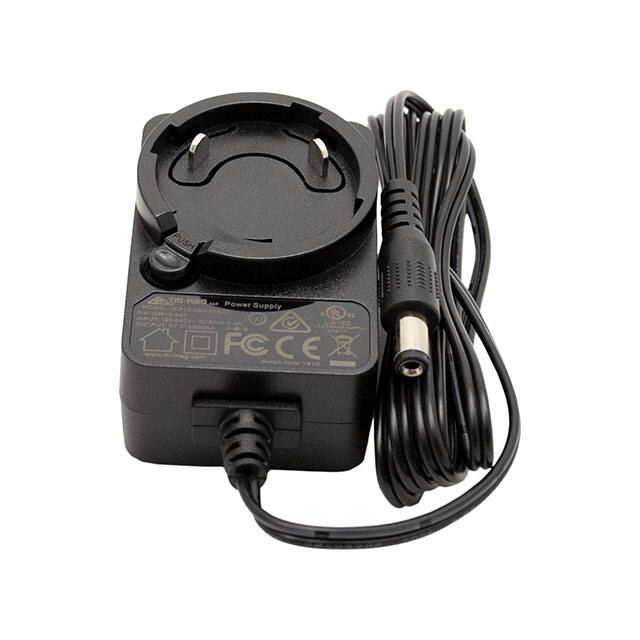

The Tri-Mag, LLC ICM12-050 is a versatile AC/DC wall mount power adapter designed for Information Technology Equipment (ITE) applications. It provides a stable 5Vdc output at a maximum current of 2.1A, delivering up to 11W of power.
This adapter boasts a universal input voltage range of 90-264Vac and operates at frequencies between 47-63Hz, making it suitable for international use. It meets DOE Level VI efficiency standards, ensuring reduced energy consumption. The compact and lightweight design, with dimensions of 59.0mm x 40.9mm x 31.5mm, makes it ideal for space-constrained environments.
Key features include a barrel plug output connector (2.1mm I.D. x 5.5mm O.D. x 9.5mm) with positive center polarization. The input connection is a Multi-Blade type, sold separately, allowing for regional adapter flexibility. Safety approvals include cUL, FCC, and UL, adhering to the 60950-1 standard. The operating temperature range is 0°C to 40°C.
The ICM12-050 provides a +5.0Vdc output at a maximum current of 2.1A.
The ICM12-050 adapter has a power rating of 11 W.
The ICM12-050 accepts a universal input voltage range from 90 Vac to 264 Vac.
Yes, the ICM12-050 meets the DOE Level VI efficiency rating.
The ICM12-050 operates within a temperature range of 0°C to 40°C.
The ICM12-050 features a Barrel Plug output connector with dimensions of 2.1mm I.D. x 5.5mm O.D. x 9.5mm.
The ICM12-050 is safety approved by cUL, FCC, and UL.
