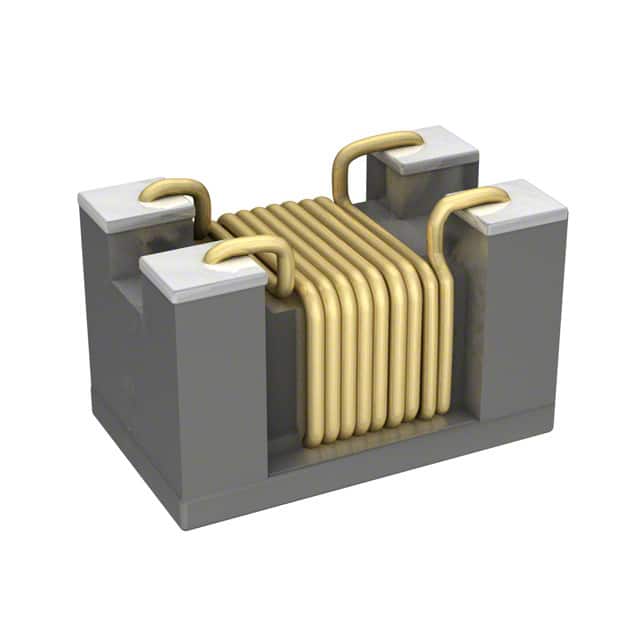

ICM0805ER371M Surface mount common mode choke with 2 lines, 370 Ω impedance at 100 MHz, 280 mA current rating, and 50 V voltage rating in an 0805 package.
Mfr Part #:

ICM0805ER371M

Available from 1 distributors
Mfr Name: Vishay
Vishay
Surface mount common mode choke with 2 lines, 370 Ω impedance at 100 MHz, 280 mA current rating, and 50 V voltage rating in an 0805 package.
✓ Total Stock: 4,000 pcs
$ Price Range: $0.32 - $0.61

ICM0805ER371M Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
4,000 pcs
On Request
4000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ICM0805ER371M Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current Rating
Current Rating (Max)
DC Resistance (DCR)
DC Resistance (DCR) (Max)
Filter Type
Height (Max)
Impedance @ Frequency
Mounting Type
Number of Lines
Operating Temperature
Voltage Rating
View Similar Products (0)

ICM0805ER371M Description

Short technical summary and product information.

The ICM0805ER371M is a surface mount common mode choke from Vishay Dale, part of the ICM-0805 series. It offers a common mode impedance of 370 Ω ±20% at 100 MHz, with a maximum DC resistance of 450 mΩ. The component is rated for a maximum current of 280 mA with a 15°C temperature rise and a voltage rating of 50 V. Withstanding voltage is 125 V and minimum insulation resistance is 10 MΩ.



Designed for signal line filtering, this choke is suitable for applications such as USB 2.0, IEEE1394, notebook and personal computers, digital cameras, and scanners. It operates over a temperature range of -40°C to +85°C.



The part is housed in an 0805 (2012 Metric) surface mount package with SMD/SMT termination, measuring 2.00 mm in length, 1.20 mm in width, and a maximum height of 1.45 mm. The datasheet indicates material categorization for compliance definitions.

ICM0805ER371M Quick Information

Product Type: Common Mode Choke
Series: ICM-0805
Canonical Name: ICM0805ER371M Surface Mount Common Mode Choke
Subcategory: Signal Line

ICM0805ER371M Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected

ICM0805ER371M Estimated Pricing

Qty Low High
1+ $0.61 $0.61
10+ $0.50 $0.50
25+ $0.44 $0.44
100+ $0.41 $0.41
250+ $0.38 $0.38
500+ $0.36 $0.36
1,000+ $0.34 $0.34
2,000+ $0.32 $0.32

Estimated market price range - modelled values for guidance only, not live distributor offers.

ICM0805ER371M Features

  • 370 Ω common mode impedance at 100 MHz.
  • Rated for 280 mA with 15°C rise.
  • 50 V DC voltage rating and 125 V withstanding.
  • Surface mount 0805 package (2.00 x 1.20 mm).
  • Operating temperature range -40°C to +85°C.

ICM0805ER371M Applications

  • Used in USB 2.0 and IEEE1394 filtering.
  • Suitable for notebook and personal computers.
  • Applied in digital camera circuits.
  • Used in scanner signal line filtering.

ICM0805ER371M FAQs

6 frequently asked questions generated from this part’s specifications.
What is the impedance of ICM0805ER371M?

370 Ω ±20% at 100 MHz.

What is the current rating of ICM0805ER371M?

280 mA maximum with a 15°C temperature rise.

What is the voltage rating?

50 V DC, with a withstanding voltage of 125 V.

What is the operating temperature range?

-40°C to +85°C.

What is the package size?

0805 (2012 Metric) surface mount, 2.00 mm x 1.20 mm, max height 1.45 mm.

Is ICM0805ER371M RoHS compliant?

Listed as RoHS3 Compliant in the database, but not verified by a compliance document.
