| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
43,770 pcs
|
43770 pcs | On Request | 1 | On Request | On Request | 15+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| CPU | |
| Digital Motion Processor | |
| Flash Memory | |
| I2C Clock Speed | |
| Mounting Type | |
| Operating Temperature | |
| Output Type | |
| Package Size | |
| Power Consumption | |
| Programmable Accelerometer Full-Scale Range | |
| Programmable Gyroscope Full-Scale Range | |
| SPI Clock Speed | |
| SRAM | |
| Sensor Type | |
| Supplier Device Package |

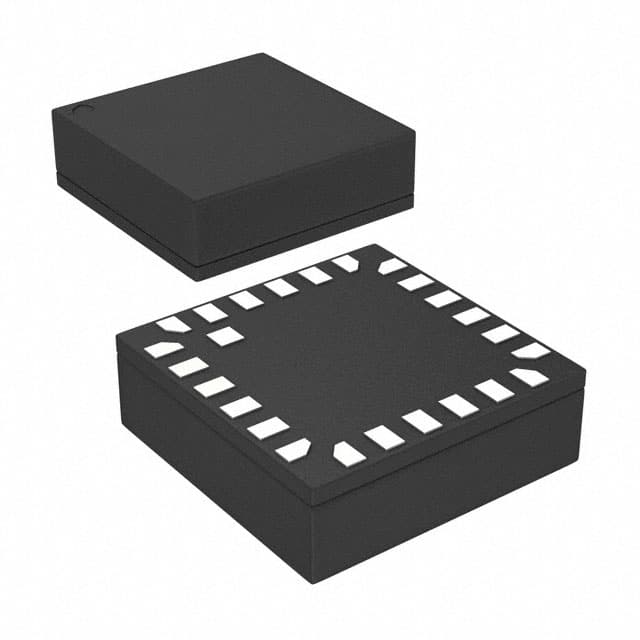

The ICM-30630 from InvenSense Inc is a single-chip, tri-core 6-axis motion tracking solution featuring an integrated sensor-hub framework. This device combines industry-leading gyroscope and accelerometer sensors with multiple processors, including an ARM Cortex-M0 CPU and DMP3/DMP4 Digital Motion Processors, all within a small 3x3x1mm LGA package.
Designed as a sensor hub, the ICM-30630 supports the collection and processing of data from internal and external sensors. Its multi-core architecture is optimized to offload processing from the application processor, leading to significant system power savings and improved performance. The ARM Cortex-M0 CPU offers a low-power programmable platform, while the DMP3 handles Android L processing and provides ready-to-use Android sensors. The DMP4 is specialized for fixed-point processing and FFT generation, complementing the CPU by offloading mathematically intensive operations.
The integrated InvenSense Sensor Framework provides a robust platform for developing cutting-edge always-on applications for mobile devices. Developers can leverage the built-in framework components for rapid development and feature launch. The command protocol is designed for seamless porting to new systems, enabling software reuse and maximizing return on software investment. Key features include on-chip runtime calibration, an auxiliary I2C interface for multi-sensor MotionFusion, and programmable full-scale ranges for both the gyroscope (±250 to ±2000 dps) and accelerometer (±2g to ±16g).
This IMU is suitable for applications such as smartphones, tablets, and wearables. It is available in a 24-Pin LGA package and operates within a temperature range of -40°C to 85°C. The device supports I²C up to 2.7MHz and SPI up to 6.4MHz communication interfaces.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -40°C to 85°C.
The ICM-30630 is available in a 24-Pin LGA package, specifically a 3x3x1mm LGA or 24-QFN (3x3) or 24-TFQFN Module Exposed Pad.
The gyroscope has programmable FSRs of ±250, ±500, ±1000, and ±2000 dps. The accelerometer has programmable FSRs of ±2g, ±4g, ±8g, and ±16g.
The 6-axis power consumption is 2.25mW when operating at 102.3Hz ODR for both gyroscope and accelerometer.
The ICM-30630 supports I²C up to 2.7MHz and SPI up to 6.4MHz.
