| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,398 pcs
|
4398 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,172 pcs
|
1172 pcs | On Request | 1 | On Request | On Request | 23+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Lead Spacing | |
| Mounting Type | |
| Operating Temperature | |
| Operating Voltage | |
| Output Type | |
| Sensor Type | |
| Supplier Device Package | |
| Supplier Package |

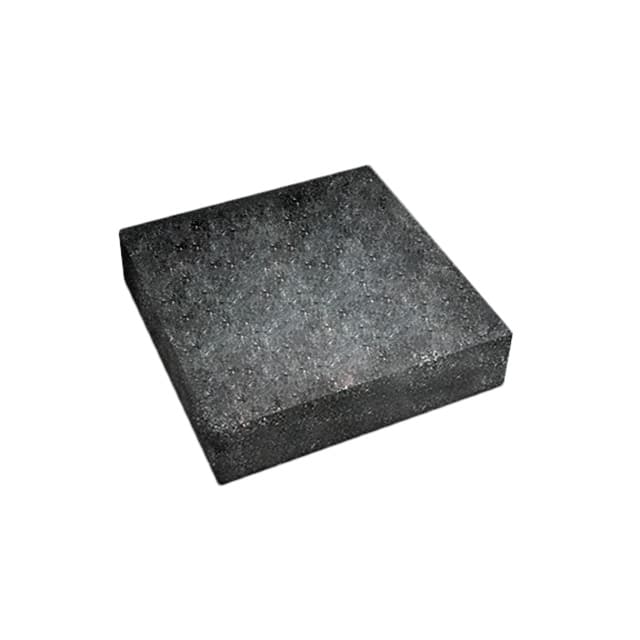

The ICM-20689 from InvenSense Inc. is a 6-axis MEMS MotionTracking device designed for high-performance applications. It combines a 3-axis gyroscope and a 3-axis accelerometer with an integrated Digital Motion Processor (DMP) within a small 4x4x0.9 mm 24-pin QFN package.
This device features programmable full-scale ranges for both the gyroscope (±250dps to ±2000dps) and accelerometer (±2g to ±16g). It includes on-chip 16-bit ADCs, programmable digital filters, and an embedded temperature sensor. The ICM-20689 supports a wide operating voltage range from 1.71V to 3.45V and offers flexible communication interfaces including high-speed SPI at 8 MHz and Fast Mode I2C at 400 kHz.
A large 4K-byte FIFO buffer is included to reduce traffic on the serial bus and minimize power consumption by allowing the system processor to read data in bursts. The device also features user-programmable interrupts, including a wake-on-motion interrupt for low-power operation of the applications processor.
Applications for the ICM-20689 include mobile phones and tablets, drones, motion-based game controllers, 3D remote controls, and wearable sensors for health, fitness, and sports. The MEMS structure is hermetically sealed and bonded at the wafer level, and the package is RoHS and Green compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -40°C to 85°C.
The gyroscope has programmable full-scale ranges of ±250dps, ±500dps, ±1000dps, and ±2000dps.
The accelerometer has programmable full-scale ranges of ±2g, ±4g, ±8g, and ±16g.
The device features a large 4K-byte FIFO buffer.
The ICM-20689 includes on-chip 16-bit ADCs.
The device supports high-speed SPI at 8 MHz and Fast Mode I2C at 400 kHz.
The operating voltage range is 1.71V to 3.45V.
