| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
720 pcs
|
720 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type | |
| Operating Temperature | |
| Operating Voltage | |
| Output Type | |
| Sensor Type | |
| Supplier Device Package | |
| Supplier Package |
The ICM-20648 from InvenSense Inc. is a 6-axis MEMS MotionTracking device designed for applications such as smartphones, tablets, wearable sensors, and IoT devices. It integrates a 3-axis gyroscope and a 3-axis accelerometer, along with an onboard Digital Motion Processor (DMP) that offloads computation from the host processor.
This device supports a programmable full-scale range for the gyroscope of ±250dps to ±2000dps and for the accelerometer of ±2g to ±16g. It operates within a voltage range of 1.71V to 3.6V and features communication ports including high-speed SPI at 7MHz and Fast Mode I²C at 400kHz. An auxiliary I2C interface is available for external sensors.

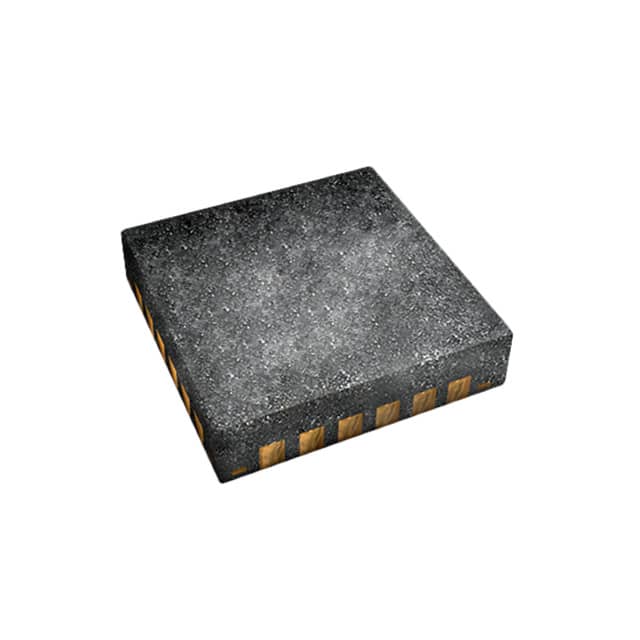

The ICM-20648 is housed in a compact 24-pin QFN package, measuring 3x3x0.9mm, and is designed for surface mounting. It includes an embedded temperature sensor and on-chip 16-bit ADCs. The device is specified for an operating temperature range of -40°C to +85°C.
Software drivers are compliant with Google's latest Android release, and the device offers enhanced FSYNC functionality for applications like Electronic Image Stabilization (EIS).
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -40°C to +85°C.
The ICM-20648 includes a 3-axis accelerometer, a 3-axis gyroscope, and a temperature sensor, totaling 6 axes of motion tracking.
The ICM-20648 supports both I2C and SPI communication interfaces.
The ICM-20648 is designed for surface mounting.
The gyroscope has programmable full-scale ranges of ±250dps, ±500dps, ±1000dps, and ±2000dps. The accelerometer has programmable full-scale ranges of ±2g, ±4g, ±8g, and ±16g.
The operating voltage range is from 1.71V to 3.6V.
The ICM-20648 is available in a 24-QFN package.
