| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
13,895 pcs
|
13895 pcs | On Request | 1 | On Request | On Request | 16+ | On Request | On Request | |
|
1,692 pcs
|
1692 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Axis | |
| Mounting Type | |
| Operating Temperature | |
| Operating Voltage | |
| Output Type | |
| Sensor Type | |
| Supplier Device Package |

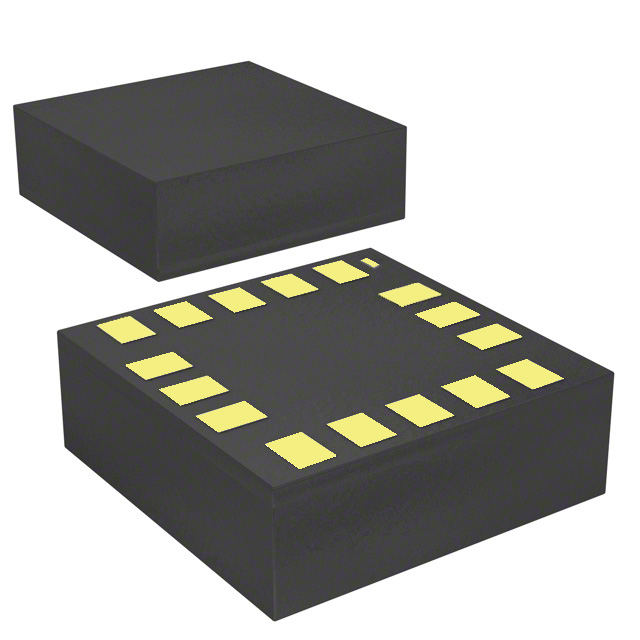

The ICM-20602 from InvenSense Inc. is a high-performance 6-axis MEMS MotionTracking device. It integrates a 3-axis gyroscope and a 3-axis accelerometer into a compact 3mm x 3mm x 0.75mm 16-pin LGA package. The device features on-chip 16-bit ADCs, programmable digital filters, and an embedded temperature sensor.
Key specifications include a gyroscope sensitivity error of ±1%, gyroscope noise of ±4 mdps/√Hz, and accelerometer noise of 100 µg/√Hz. It offers programmable full-scale ranges for both the gyroscope (±250 dps to ±2000 dps) and accelerometer (±2g to ±16g). The ICM-20602 supports communication via 10 MHz SPI or 400 kHz Fast Mode I2C.
This motion tracking device is suitable for applications such as smartphones, tablets, wearable sensors, and IoT devices. It includes a 1 KB FIFO buffer to reduce serial bus traffic and power consumption, and supports wake-on-motion interrupts for low-power operation. The operating voltage range is from 1.71V to 3.45V.
The ICM-20602 is available in a 16-Pin LGA package and operates within a temperature range of -40°C to 85°C. It is designed for surface mount applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -40°C to 85°C.
The ICM-20602 is supplied in a 16-LGA (3x3) package.
The programmable full-scale ranges for the gyroscope are ±250 dps, ±500 dps, ±1000 dps, and ±2000 dps.
The programmable full-scale ranges for the accelerometer are ±2g, ±4g, ±8g, and ±16g.
The operating voltage range is 1.71V to 3.45V.
The ICM-20602 supports I2C and high-speed SPI interfaces.
