| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
19,642 pcs
|
19642 pcs | On Request | 1 | On Request | On Request | 20+ | On Request | On Request | |
|
5,000 pcs
|
5000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
400 pcs
|
400 pcs | On Request | 1 | On Request | On Request | 20+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Lead Spacing | |
| Mounting Type | |
| Operating Temperature | |
| Operating Voltage | |
| Output Type | |
| Sensor Type | |
| Supplier Device Package | |
| Supplier Package |

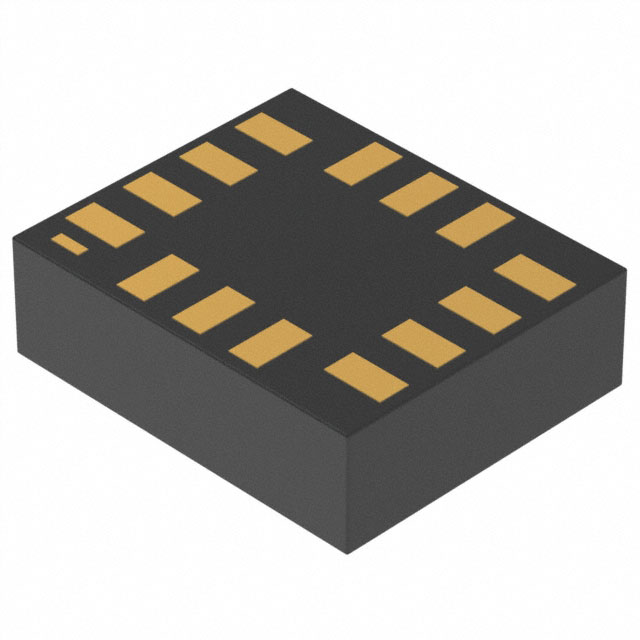

The ICM-20600 from InvenSense Inc. is a high-performance, 6-axis MEMS MotionTracking device. It integrates a 3-axis gyroscope and a 3-axis accelerometer into a small 2.5x3x0.91mm 14-pin LGA package. This device is designed for applications requiring precise motion sensing.
Key features include programmable full-scale ranges for both the gyroscope (±250 dps to ±2000 dps) and the accelerometer (±2g to ±16g). It boasts low noise levels with gyroscope noise at ±4 mdps/√Hz and accelerometer noise at 100 µg/√Hz. The ICM-20600 operates within a voltage range of 1.71V to 3.45V and supports both I2C (400 kHz Fast Mode) and high-speed SPI (10 MHz) host interfaces.
Additional capabilities include on-chip 16-bit ADCs, programmable digital filters, an embedded temperature sensor, and user-programmable interrupts, including a wake-on-motion interrupt for low-power operation. A 1K-byte FIFO buffer is included to reduce traffic on the serial bus and allow the system processor to enter a low-power mode.
The ICM-20600 is suitable for a wide range of applications such as smartphones, tablets, wearable sensors, IoT devices, and motion-based game controllers. Its compact size and robust performance make it an ideal choice for space-constrained designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -40°C to 85°C.
The gyroscope has programmable full-scale ranges of ±250 dps, ±500 dps, ±1000 dps, and ±2000 dps.
The accelerometer has programmable full-scale ranges of ±2g, ±4g, ±8g, and ±16g.
The device operates within a voltage range of 1.71V to 3.45V.
It supports both I2C and high-speed SPI interfaces.
The device includes a 1K-byte FIFO buffer.
The ICM-20600 features on-chip 16-bit ADCs.
