| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
54,000 pcs
|
54000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Lead Spacing | |
| Mounting Type | |
| Number of I | |
| Number of LABs | |
| Number of Logic Elements | |
| Operating Temperature | |
| Supplier Device Package | |
| Total RAM Bits | |
| Voltage |
The Lattice Semiconductor ICE5LP4K-CM36ITR is an FPGA from the iCE40 Ultra family, designed for ultra-low power mobile applications. This device offers 3520 Look Up Tables (LUTs) and 81920 bits of embedded Block RAM.
Key electrical specifications include an operating voltage range of 1.14V to 1.26V and an operating temperature range of -40°C to 100°C (TJ). It provides 26 I/O pins and features integrated SPI and I2C blocks, along with two on-chip oscillators (10 kHz and 48 MHz).
The device includes three 24 mA constant current RGB LED outputs and one 500 mA constant current IR driver output. It is suitable for applications such as IrDA, Service LED, Barcode Emulation, GPIO Expander, and SDIO Level Shift.

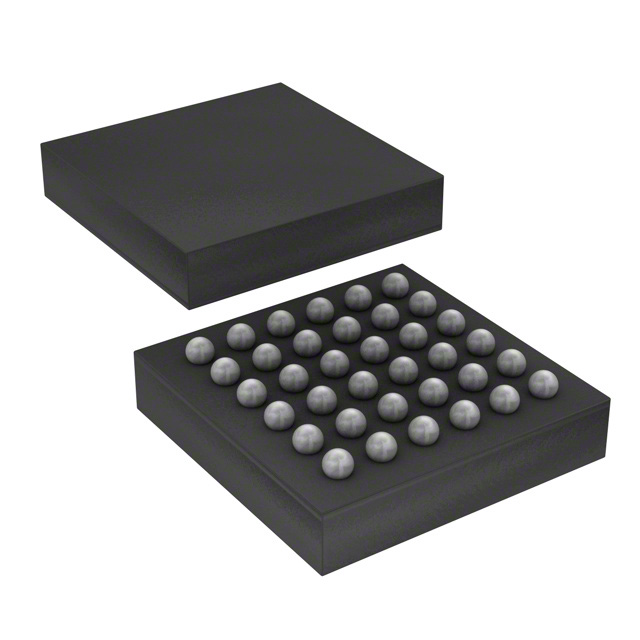

The ICE5LP4K-CM36ITR comes in a 36-UCFBGA package and supports surface mount installation. Its compact size and low power consumption make it ideal for integration into smartphones, tablets, and other hand-held devices.
The ICE5LP4K-CM36ITR FPGA operates at a voltage range of 1.14V to 1.26V and features 3520 logic elements and 81920 bits of RAM.
The ICE5LP4K-CM36ITR has 26 I/O pins.
The operating temperature range for the ICE5LP4K-CM36ITR is -40°C to 100°C (TJ).
The ICE5LP4K-CM36ITR is available in a 36-UCFBGA package.
The iCE40 Ultra family features two on-chip oscillators: 10 kHz and 48 MHz.
The device has three 24 mA constant current RGB LED outputs and one 500 mA constant current IR LED output.
