ICE5LP2K-SWG36ITR The Lattice Semiconductor ICE5LP2K-SWG36ITR is an FPGA with 2048 logic elements and 26 I/O pins. It operates at 1.14V to 1.26V and has a temperature range of -40°C to 100°C.
Mfr Part #:

ICE5LP2K-SWG36ITR

Available from 1 distributors
Mfr Name: Lattice Semiconductor Corporation
Lattice Semiconductor Corporation
The Lattice Semiconductor ICE5LP2K-SWG36ITR is an FPGA with 2048 logic elements and 26 I/O pins. It operates at 1.14V to 1.26V and has a temperature range of -40°C to 100°C.
✓ Total Stock: 20,000 pcs

ICE5LP2K-SWG36ITR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
20,000 pcs
On Request
20000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ICE5LP2K-SWG36ITR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Lead Spacing
Mounting Type
Number of I
Number of LABs
Number of Logic Elements
Operating Temperature
Supplier Device Package
Total RAM Bits
Voltage
View Similar Products (0)

ICE5LP2K-SWG36ITR Description

Short technical summary and product information.

The Lattice Semiconductor ICE5LP2K-SWG36ITR is an ultra-low power FPGA designed for mobile applications. It features 2048 Look Up Tables (LUTs) and 256 Logic Array Blocks (LABs), providing flexible logic architecture.



This device includes 26 programmable I/O pins and 81920 bits of Block RAM. It operates within a voltage range of 1.14V to 1.26V and has an operating temperature range of -40°C to 100°C (TJ).



Key features include two on-chip oscillators (10 kHz and 48 MHz), two hardened I2C interfaces, and two hardened SPI interfaces. It also offers three 24 mA constant current RGB LED outputs and one 500 mA constant current IR LED output.

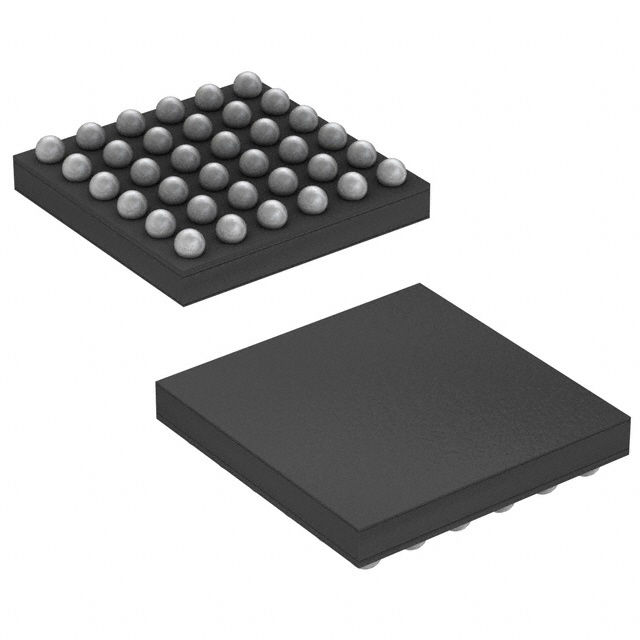

The ICE5LP2K-SWG36ITR is supplied in a 36-WLCSP (2.1x2.1) package, suitable for surface mounting.

ICE5LP2K-SWG36ITR Quick Information

Product Type: FPGA
Series: iCE40 Ultra
Canonical Name: Lattice Semiconductor ICE5LP2K-SWG36ITR FPGA
Subcategory: Field Programmable Gate Array

ICE5LP2K-SWG36ITR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ICE5LP2K-SWG36ITR Features

  • 2048 logic elements and 256 LABs.
  • 26 programmable I/O pins available.
  • 81920 bits of embedded Block RAM.
  • Operates at 1.14V to 1.26V.
  • Wide temperature range: -40°C to 100°C.

ICE5LP2K-SWG36ITR Applications

  • Ideal for mobile applications.
  • Sensor manager functions.
  • Drives service LEDs directly.
  • Supports IrDA functions.
  • Barcode emulation capabilities.

ICE5LP2K-SWG36ITR FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage for the ICE5LP2K-SWG36ITR FPGA?

The operating voltage is 1.14V to 1.26V.

What is the operating temperature range of the ICE5LP2K-SWG36ITR?

The operating temperature range is -40°C to 100°C (TJ).

How many logic elements does the ICE5LP2K-SWG36ITR FPGA have?

The ICE5LP2K-SWG36ITR has 2048 logic elements.

What is the total RAM bit count for the ICE5LP2K-SWG36ITR?

The total RAM bit count is 81920 bits.

How many I/O pins are available on the ICE5LP2K-SWG36ITR?

There are 26 I/O pins available.

What package type is the ICE5LP2K-SWG36ITR supplied in?

It is supplied in a 36-WLCSP (2.1x2.1) package.

Does the ICE5LP2K-SWG36ITR have integrated SPI and I2C interfaces?

Yes, it features two hardened SPI interfaces and two hardened I2C interfaces.
