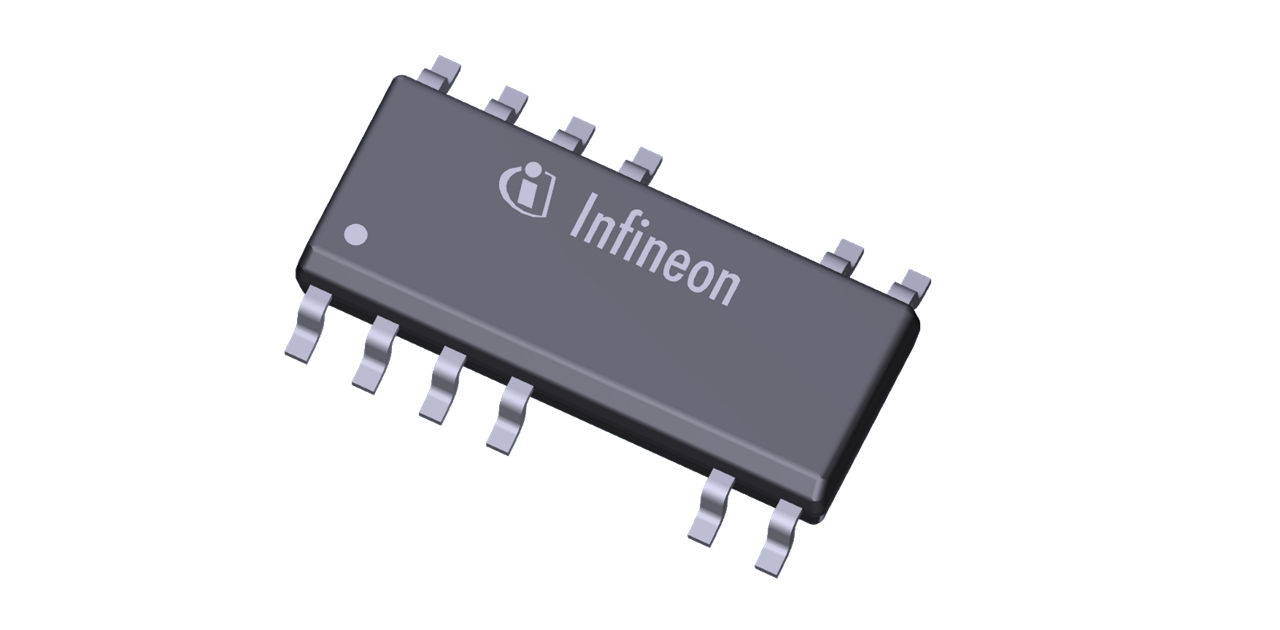

ICE5GR1680AG The Infineon ICE5GR1680AG is a fixed frequency integrated power IC featuring 700V/800V CoolMOS™. It offers enhanced Active Burst Mode for low standby power and comprehensive protection features.
Mfr Part #:

ICE5GR1680AG

Available from 1 distributors
Mfr Name: Infineon
Infineon
The Infineon ICE5GR1680AG is a fixed frequency integrated power IC featuring 700V/800V CoolMOS™. It offers enhanced Active Burst Mode for low standby power and comprehensive protection features.
✓ Total Stock: 1,431 pcs
$ Price Range: $0.75

ICE5GR1680AG Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Xingangxin ✓
Non-Authorised Inventory information
1,431 pcs
On Request
1431 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ICE5GR1680AG Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Halogen Free
Mounting Type
Voltage
View Similar Products (0)

ICE5GR1680AG Description

Short technical summary and product information.

The Infineon ICE5GR1680AG is a 5th generation fixed frequency integrated power IC (CoolSET™) optimized for off-line switch mode power supplies. It incorporates a 700V/800V avalanche rugged CoolMOS™ and a controller chip within a single package.



Key features include enhanced Active Burst Mode with selectable entry and exit standby power, enabling standby power consumption below 100 mW. Digital frequency reduction and frequency jitter with soft gate driving contribute to better system efficiency and lower EMI. The device supports DCM and CCM operation with slope compensation and includes a built-in digital soft start.



Comprehensive protection functions are integrated, including input line over voltage protection, VCC over voltage, VCC under voltage, overload/open loop, and over temperature protection, all operating in auto restart mode. The ICE5GR1680AG is housed in a PG-DSO-12 package suitable for surface mounting.



This integrated power IC is designed for auxiliary power supplies in home appliances, TVs, PCs, servers, Blu-ray players, set-top boxes, and LCD/LED monitors.

ICE5GR1680AG Quick Information

Product Type: AC DC Converters, Offline Switches
Series: ICE5xRxxxxAG
Canonical Name: ICE5GR1680AG CoolSET™ Fixed Frequency Integrated Power IC
Subcategory: Offline Switch

ICE5GR1680AG Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Pb-free

ICE5GR1680AG Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

ICE5GR1680AG Features

  • Integrated 700V/800V avalanche rugged CoolMOS™.
  • Low standby power <100 mW.
  • Digital frequency reduction for efficiency.
  • Frequency jitter and soft gate driving for low EMI.
  • Comprehensive protection features with auto restart.

ICE5GR1680AG Applications

  • Auxiliary power supplies for home appliances.
  • Power supplies for TVs and monitors.
  • Used in PC and server power supplies.
  • Suitable for Blu-ray players.
  • Designed for set-top boxes.

ICE5GR1680AG FAQs

6 frequently asked questions generated from this part’s specifications.
What is the voltage rating of the Infineon ICE5GR1680AG?

The ICE5GR1680AG features an integrated 700 V/800 V avalanche rugged CoolMOS™.

What is the standby power consumption of the ICE5GR1680AG?

The ICE5GR1680AG achieves standby power below 100 mW in enhanced Active Burst Mode.

What type of package is the ICE5GR1680AG supplied in?

The ICE5GR1680AG is supplied in a PG-DSO-12 package.

Does the ICE5GR1680AG have protection features?

Yes, the ICE5GR1680AG includes input line over voltage, VCC over voltage, VCC under voltage, overload/open loop, and over temperature protection, all in auto restart mode.

Is the Infineon ICE5GR1680AG RoHS compliant?

The RoHS Status is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for the ICE5GR1680AG?

The Moisture Sensitivity Level (MSL) is 1 Unlimited.
