Mfr Part #:

ICE5AR0680BZS

Mfr Name: Infineon

The Infineon ICE5AR0680BZS is a fixed frequency integrated power IC optimized for off-line switch mode power supplies. It features a 700V/800V CoolMOS™ and offers low standby power.

✓ Total Stock: 2,180 pcs

$ Price Range: $0.75

ICE5AR0680BZS Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Xingangxin ✓ Non-Authorised Inventory information	2,180 pcs On Request	2180 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

ICE5AR0680BZS Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Infineon
Halogen Free	Halogen-free
Mounting Type	Through Hole
Protection Features	VCC over voltage, VCC under voltage, overload/open loop, over temperature
SVHC Present	Not Present
Voltage Rating	700 V

View Similar Products (0)

ICE5AR0680BZS Description

Short technical summary and product information.

The Infineon ICE5AR0680BZS is a 5th generation CoolSET™ integrated power IC designed for off-line switch mode power supplies in a cascode configuration. This device integrates a 700V/800V avalanche rugged CoolMOS™ with a controller chip.

Key features include enhanced Active Burst Mode for standby power consumption below 100 mW, digital frequency reduction for improved system efficiency, and fast startup due to the cascode configuration. It operates with DCM and CCM modes and includes frequency jitter and soft gate driving for reduced EMI and better efficiency at light loads.

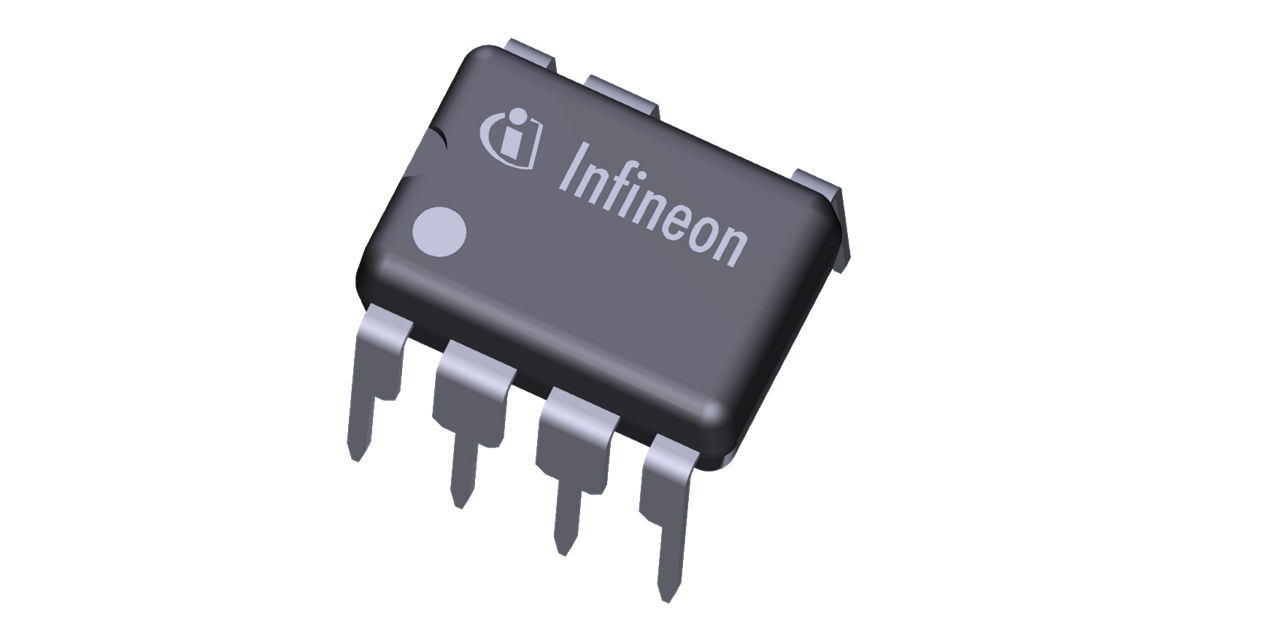

The ICE5AR0680BZS provides comprehensive protection functions including VCC over/under voltage, overload/open loop, and over temperature, all operating in auto restart mode. It is housed in a PG-DIP-7 package and is suitable for auxiliary power supplies in home appliances, TVs, PCs, servers, Blu-ray players, and set-top boxes.

This component is designed for applications requiring efficient and reliable power conversion with low standby power consumption and robust protection features.

ICE5AR0680BZS Quick Information

Product Type: Integrated Power IC

Series: ICE5ARxxxxBZS

Canonical Name: ICE5AR0680BZS Fixed Frequency CoolSET™ Integrated Power IC

Subcategory: Offline Switches

ICE5AR0680BZS Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

ICE5AR0680BZS Estimated Pricing

Qty	Low	High
1+	$0.75	$0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

ICE5AR0680BZS Features

Integrated 700V/800V avalanche rugged CoolMOS™.
Enhanced Active Burst Mode for low standby power.
Digital frequency reduction for system efficiency.
Fast startup via cascode configuration.
Comprehensive auto-restart protection features.

ICE5AR0680BZS Applications

Auxiliary power for home appliances.
Power supplies for TVs and PCs.
Used in set-top boxes and monitors.
Suitable for Blu-ray players.

ICE5AR0680BZS FAQs

7 frequently asked questions generated from this part’s specifications.

What is the voltage rating of the Infineon ICE5AR0680BZS?

The ICE5AR0680BZS has a voltage rating of 700V and 800V.

What is the operating supply voltage range for the ICE5AR0680BZS?

The operating supply voltage range is from 10.0 V to 25.5 V.

What is the standby power consumption of the ICE5AR0680BZS?

The standby power consumption is less than 100 mW.

What protection features are included in the ICE5AR0680BZS?

It includes VCC over voltage, VCC under voltage, overload/open loop, and over temperature protections, all in auto restart mode.

What package type is the ICE5AR0680BZS supplied in?

The ICE5AR0680BZS is supplied in a PG-DIP-7 package.

Is the Infineon ICE5AR0680BZS RoHS compliant?

The RoHS status is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for this component?

The Moisture Sensitivity Level (MSL) is 1 Unlimited.
