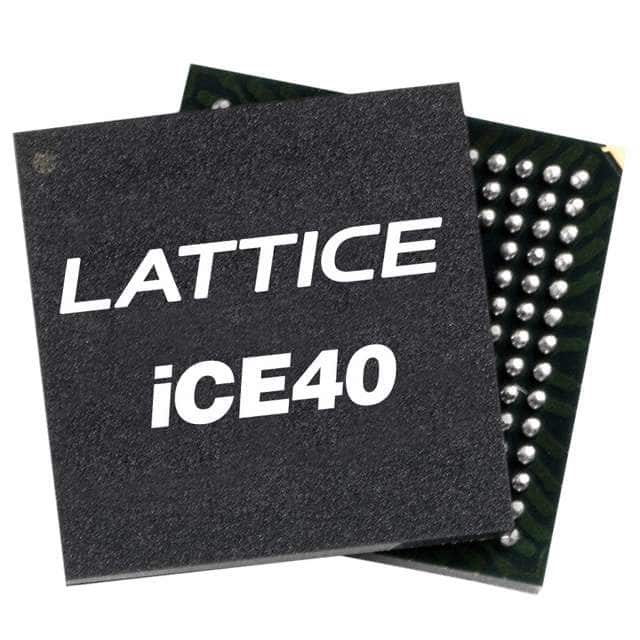

ICE40LM1K-CM36 The Lattice Semiconductor ICE40LM1K-CM36 is an FPGA with 1000 logic elements and 28 I/O pins. It features 65536 bits of RAM and operates within a voltage range of 1.14V to 1.26V.
Mfr Part #:

ICE40LM1K-CM36

Available from 3 distributors
Mfr Name: Lattice Semiconductor Corporation
Lattice Semiconductor Corporation
The Lattice Semiconductor ICE40LM1K-CM36 is an FPGA with 1000 logic elements and 28 I/O pins. It features 65536 bits of RAM and operates within a voltage range of 1.14V to 1.26V.
✓ Total Stock: 59,322 pcs

ICE40LM1K-CM36 Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
58,233 pcs
On Request
58233 pcs On Request 1 On Request On Request On Request On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
1,088 pcs
On Request
1088 pcs On Request 1 On Request On Request 14+ On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request 14+ On Request 2026-06-03 08:15:16
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ICE40LM1K-CM36 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Lead Spacing
Mounting Type
Number of I
Number of I/O
Number of LABs
Number of Logic Elements
Operating Temperature
Supplier Device Package
Tape & Reel
Total RAM Bits
Voltage
View Similar Products (0)

ICE40LM1K-CM36 Description

Short technical summary and product information.

The Lattice Semiconductor ICE40LM1K-CM36 is an ultra-low power FPGA designed for mobile applications. It features a flexible logic architecture with 1000 Look-Up Tables (LUTs) and 125 Logic Array Blocks (LABs). This device includes 65536 bits of embedded Block RAM and provides 28 programmable I/O pins.



Operating within a voltage range of 1.14V to 1.26V, the ICE40LM1K-CM36 has a typical standby power of 120 µW. It is suitable for applications requiring sensor management, mobile bridging, GPIO expansion, and custom functions. The device operates across a temperature range of -40°C to 100°C (TJ).



This FPGA comes in a 36-UCBGA package with surface mount mounting type. The package size is 2.5x2.5 mm, and it is also referred to as 36-VFBGA. It is designed for integration into compact electronic devices.

ICE40LM1K-CM36 Quick Information

Product Type: FPGA
Canonical Name: ICE40LM1K-CM36 FPGA
Subcategory: Field Programmable Gate Array

ICE40LM1K-CM36 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ICE40LM1K-CM36 Features

  • 1000 logic elements and 125 LABs
  • 65536 bits of embedded Block RAM
  • 28 programmable I/O pins
  • Ultra-low power consumption
  • 36-UCBGA surface mount package

ICE40LM1K-CM36 Applications

  • Mobile sensor management applications
  • GPIO expansion and custom functions
  • Mobile bridging and antenna tuning
  • Motion and gesture recognition

ICE40LM1K-CM36 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the logic element count for the ICE40LM1K-CM36 FPGA?

The ICE40LM1K-CM36 FPGA has 1000 logic elements.

How many I/O pins does the ICE40LM1K-CM36 FPGA have?

The ICE40LM1K-CM36 FPGA has 28 I/O pins.

What is the operating voltage range for the ICE40LM1K-CM36 FPGA?

The operating voltage range for the ICE40LM1K-CM36 FPGA is 1.14V to 1.26V.

What package type is the ICE40LM1K-CM36 FPGA supplied in?

The ICE40LM1K-CM36 FPGA is supplied in a 36-UCBGA (2.5x2.5) package, also known as 36-VFBGA.

What is the typical standby power of the ICE40LM1K-CM36 FPGA?

The typical standby power of the ICE40LM1K-CM36 FPGA is 120 µW.
