| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,240 pcs
|
1240 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,077 pcs
|
1077 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Frequency | |
| Industrial Grade | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Storage Temperature | |
| Tape & Reel | |
| Voltage |

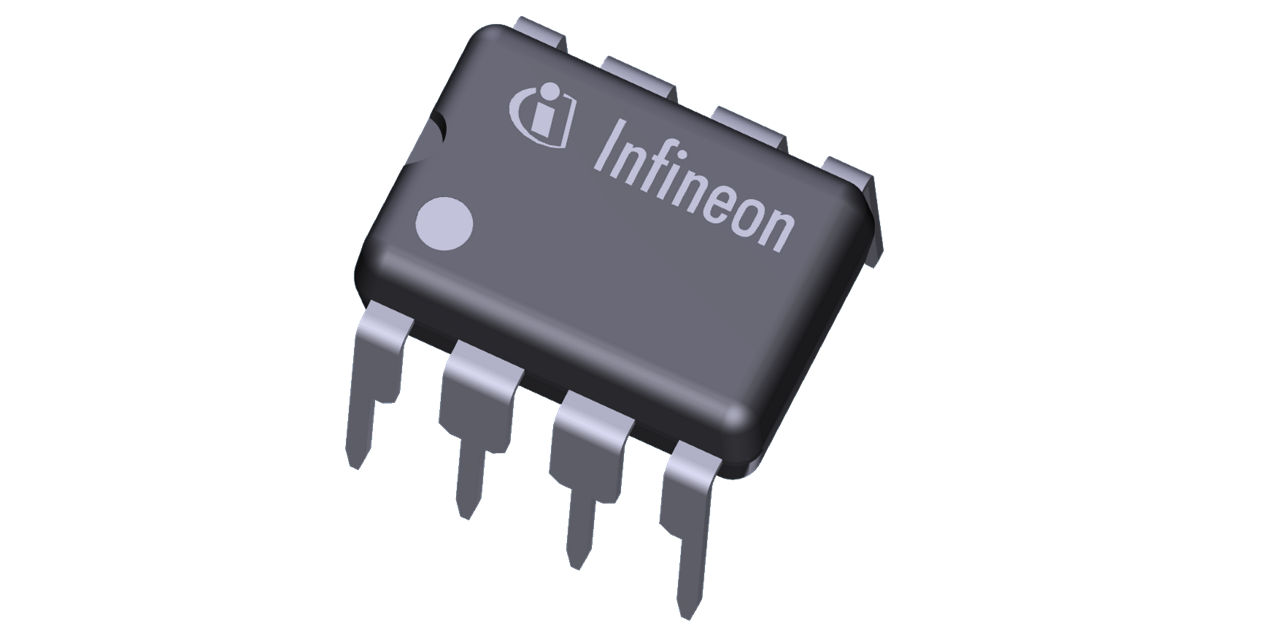

The Infineon ICE3BR1765J is an Off-Line SMPS Current Mode Controller from the CoolSET-F3R series. This component integrates a 650V CoolMOS and a startup cell with frequency jitter mode, housed in a DIP-8 package.
Designed for applications such as battery adapters and low-cost SMPS in the lower power range, including DVD R/W, DVD Combi, Blu-ray DVD players, and set-top boxes, it offers a wide input voltage range of 85-265 VAC. Key electrical specifications include a switching frequency of 65kHz and an on-resistance of 1.7 Ohms at 25°C.
The controller supports maximum input power ratings of 46W and 31W under specific conditions. Its design focuses on efficient power management for various consumer electronics and power supply applications. The PG-DIP-8 package is suitable for through-hole mounting.
This device is part of Infineon's Power Management & Supply product line, emphasizing reliable performance in off-line switched-mode power supplies.
| Qty | Low | High |
|---|---|---|
| 1+ | $12.91 | $12.91 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The ICE3BR1765J operates with an input voltage range of 85-265 VAC.
The typical switching frequency for the ICE3BR1765J is 65kHz.
The typical on-resistance of the ICE3BR1765J is 1.7 Ohms at 25°C.
The maximum drain-source voltage for the ICE3BR1765J is 650V.
The ICE3BR1765J is supplied in a PG-DIP-8 package.
