Mfr Part #:

ICE3AR2280JZ

Mfr Name: Infineon

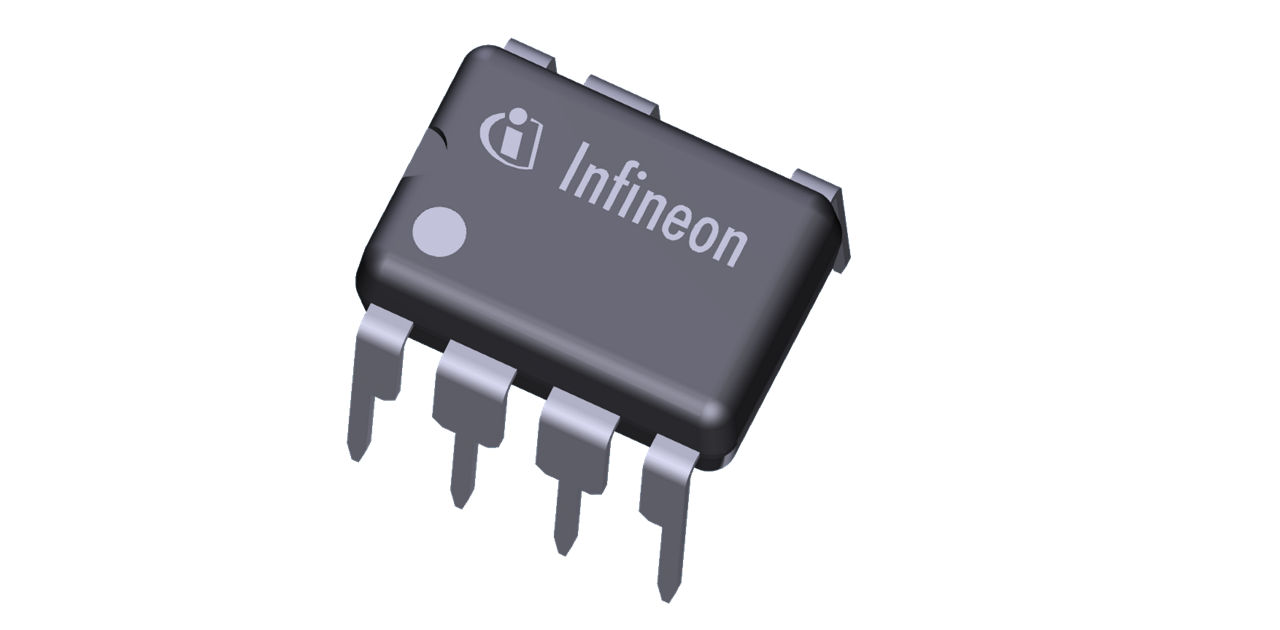

The Infineon ICE3AR2280JZ is an Off-Line SMPS Current Mode Controller with an integrated 800V CoolMOS and startup cell. It operates within an 85-265 VAC input voltage range.

✓ Total Stock: 5,708 pcs

$ Price Range: $0.75

ICE3AR2280JZ Available from 2 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Xingangxin ✓ Non-Authorised Inventory information	3,209 pcs On Request	3209 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Optech Co.,Limited ✓ Non-Authorised Inventory information	2,499 pcs On Request	2499 pcs	On Request	1	On Request	On Request	2016	On Request	On Request

ICE3AR2280JZ Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Infineon
Input Voltage	85-265 VAC
Lead Style	Through Hole
Mounting Type	Through Hole
SVHC Present	Not Present

View Similar Products (0)

ICE3AR2280JZ Description

Short technical summary and product information.

The Infineon ICE3AR2280JZ is an Off-Line SMPS Current Mode Controller designed for efficient power conversion. It features an integrated 800V CoolMOS with a startup cell, providing robust performance.

This controller operates at a fixed internal switching frequency of 100kHz with jittering for reduced EMI. It supports an input voltage range of 85-265 VAC and offers a maximum input power of 43W under specific conditions. The device includes auto-restart protection for various fault conditions like overload, open loop, under/over voltage, and over-temperature.

Packaged in a PG-DIP-7 format, the ICE3AR2280JZ is suitable for through-hole mounting. Its design incorporates Active Burst Mode for low standby power and features selectable entry and exit burst mode levels. The integrated startup cell also aids in brownout protection.

Key electrical characteristics include a typical on-resistance of 2.26 Ohms at 25°C and a maximum drain-source voltage of 800V. The device also provides over-temperature protection with a 50°C hysteresis.

ICE3AR2280JZ Quick Information

Product Type: AC DC Converters, Offline Switches

Series: F3R80

Canonical Name: Infineon ICE3AR2280JZ Off-Line SMPS Current Mode Controller with integrated 800V CoolMOS and Startup cell

Subcategory: Offline Switches

ICE3AR2280JZ Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

ICE3AR2280JZ Estimated Pricing

Qty	Low	High
1+	$0.75	$0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

ICE3AR2280JZ Features

800V avalanche rugged CoolMOS with startup cell.
Active Burst Mode for lowest standby power.
100kHz internally fixed switching frequency.
Auto Restart Protection for overload and faults.
PG-DIP-7 package for through-hole mounting.

ICE3AR2280JZ Applications

Ideal for offline power supplies.
Suitable for switch mode power supplies.
Used in consumer electronics power.
Applicable for industrial power systems.

ICE3AR2280JZ FAQs

7 frequently asked questions generated from this part’s specifications.

What is the maximum drain-source voltage for the ICE3AR2280JZ?

The maximum drain-source voltage is 800V.

What is the switching frequency of the ICE3AR2280JZ?

The switching frequency is 100kHz.

What is the typical on-resistance of the ICE3AR2280JZ?

The typical on-resistance is 2.26 Ohms at 25°C.

What is the input voltage range for the ICE3AR2280JZ?

The input voltage range is 85-265 VAC.

What package type is the ICE3AR2280JZ supplied in?

The ICE3AR2280JZ is supplied in a PG-DIP-7 package.

What is the RoHS status of the ICE3AR2280JZ?

The RoHS status is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for the ICE3AR2280JZ?

The Moisture Sensitivity Level is 1 Unlimited.
