| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,718 pcs
|
1718 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
172 pcs
|
172 pcs | On Request | 1 | On Request | On Request | 1635+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Clock Sync | |
| Control Features | |
| Duty Cycle (Max) | |
| Frequency | |
| Function | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Configuration | |
| Output Phases | |
| Output Type | |
| Supplier Device Package | |
| Synchronous Rectifier | |
| Topology | |
| Voltage |
The Infineon Technologies ICE2QR2280Z is a DC DC Switching Controller designed for various power management applications. It supports both Step-Up and Step-Down functions, utilizing a Flyback topology for efficient power conversion.
Key electrical characteristics include an operating voltage range from 9.8V to 26V and an operating temperature range of -25°C to 130°C (TJ). The controller features a maximum duty cycle of 50% and operates at frequencies between 39kHz and 65kHz. It includes essential control features such as Soft Start and supports a single output with a positive configuration.

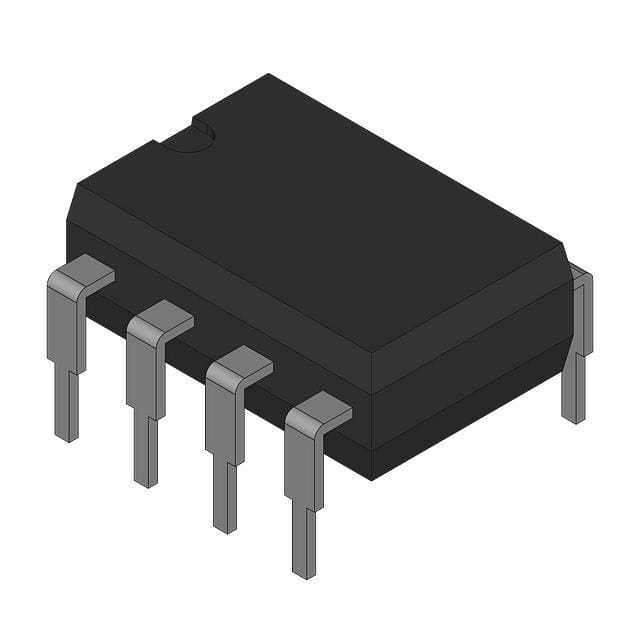

This device is a Transistor Driver with a synchronous rectifier, but without clock synchronization. It is packaged in an 8-DIP form factor with 7 leads and is designed for Through Hole mounting.
The ICE2QR2280Z is RoHS3 compliant and has an MSL rating of 1, indicating unlimited moisture sensitivity. It is also REACH unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
9.8V to 26V.
8-DIP (0.300", 7.62mm) with 7 leads, supplier device package PG-DIP-7.
-25°C to 130°C (TJ).
39kHz to 65kHz.
50%.
Yes.
Flyback.
