| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
500 pcs
|
500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Tape & Reel | |
| Termination |

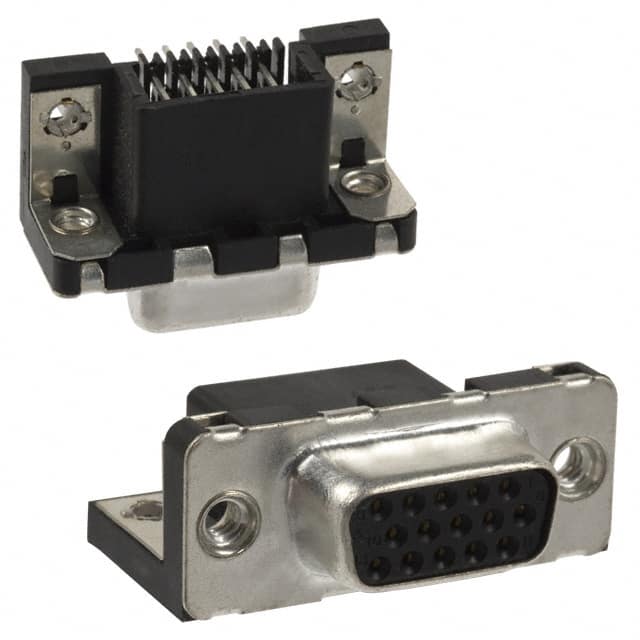

The ICD15S13E6GX00LF is a 15-position D-Sub high density receptacle from Amphenol ICC. It features female sockets arranged in 3 rows, with a shell size of 1 (DE, E) High Density. The connector is designed for through-hole, right-angle mounting with solder termination, making it suitable for PCB applications where space is limited.
Electrical specifications include a current rating of 3A per contact. The contacts are gold-plated with a thickness of 30µin (0.76µm) for reliable signal integrity. The connector includes board locks and mounting brackets for secure attachment to the PCB.
The shell is made of steel with nickel plating, and the insulator material has a UL94 V-0 flammability rating. The flange feature uses housing/shell (4-40) threads. This connector is RoHS3 compliant (unverified) and has an MSL of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $3.24 | $3.24 |
| 10+ | $2.76 | $2.76 |
| 25+ | $2.66 | $2.66 |
| 100+ | $2.49 | $2.49 |
| 250+ | $2.40 | $2.40 |
| 360+ | $2.30 | $2.30 |
| 1,080+ | $2.25 | $2.25 |
| 2,520+ | $2.12 | $2.12 |
| 5,040+ | $2.11 | $2.11 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
15 positions.
3A per contact.
Through hole, right angle.
3 rows.
Gold, 30µin thickness.
Board lock and mounting brackets.
UL94 V-0.
