| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
200 pcs
|
200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Tape & Reel | |
| Termination |

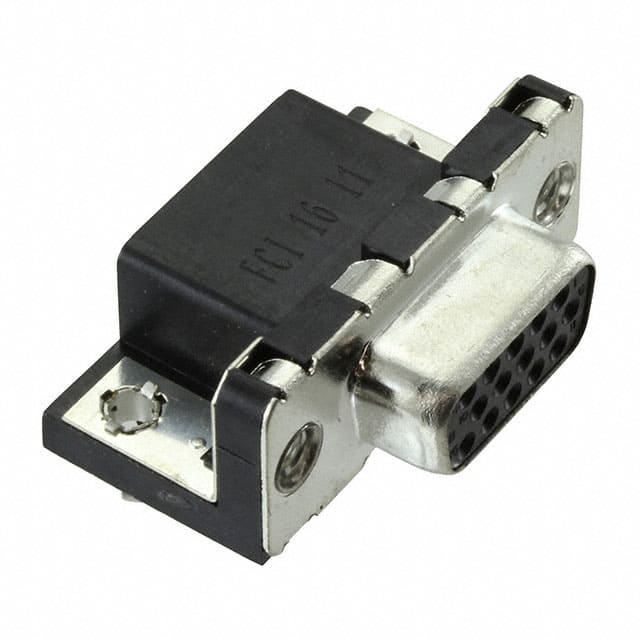

The ICD15S13E4GX00LF is a high density D-sub receptacle from Amphenol ICC featuring 15 female socket contacts arranged in 3 rows. It is designed for through hole mounting with a right angle orientation and solder termination. The contacts are finished with gold flash for reliable signal integrity. The connector is rated for 3 A current per contact. The shell is made of steel with nickel plating, and the shell size is 1 (DE, E) high density. It includes board locks and mounting brackets for secure PCB attachment. The backset spacing is 0.350 inches (8.89 mm). The insulator material has a UL94 V-0 flammability rating, suitable for applications requiring flame retardant properties.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.49 | $1.49 |
| 10+ | $1.41 | $1.41 |
| 25+ | $1.31 | $1.31 |
| 100+ | $1.26 | $1.26 |
| 250+ | $1.15 | $1.15 |
| 360+ | $1.10 | $1.10 |
| 1,080+ | $1.07 | $1.07 |
| 2,520+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
15 positions.
3 A.
Through hole, right angle.
Gold flash.
Steel, nickel plated.
Board lock and mounting brackets.
UL94 V-0.
