| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
70 pcs
|
70 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Resistance | |
| Current Rating | |
| Features | |
| Flammability Rating | |
| Grid | |
| Housing Material | |
| Insertion Force | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions or Pins (Grid) | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Shell Finish | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Type | |
| Withdrawal Force | |
| Withstanding Voltage |

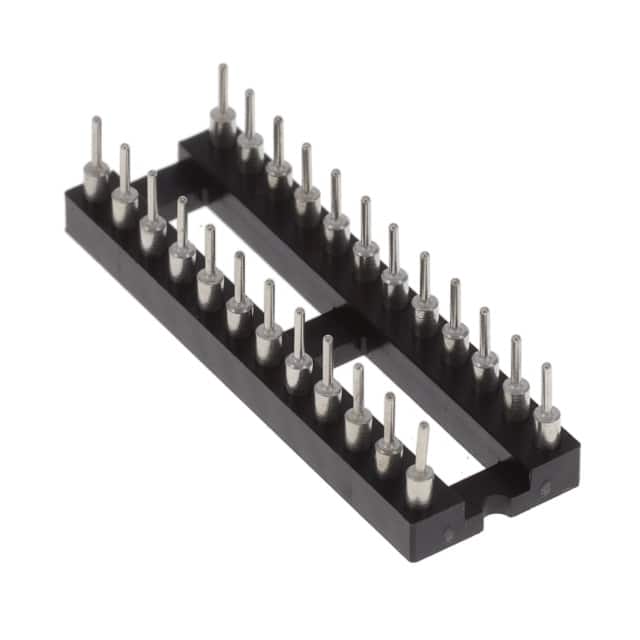

The Samtec ICA-324-STT is a 24-position DIP socket designed for through-hole mounting on printed circuit boards. It features a 2.54mm pitch and 0.300" (7.62mm) row spacing, accommodating standard DIP IC packages with 24 pins arranged in a 2 x 12 grid.
This socket uses beryllium copper contacts with a 10µ" (0.25µm) gold finish for reliable electrical connection, paired with a tin shell. The housing is made from black glass-filled polyester rated UL 94V-0 for flammability. The open frame design facilitates air flow and inspection of solder joints.
Electrical specifications include a 1A current rating, 10 mΩ maximum contact resistance, 1000 Vrms withstanding voltage, and 5000 MΩ minimum insulation resistance. The operating temperature range is -55°C to 105°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.11 | $2.11 |
| 54+ | $1.79 | $1.79 |
| 108+ | $1.59 | $1.59 |
| 504+ | $1.58 | $1.58 |
| 1,008+ | $1.39 | $1.39 |
| 2,016+ | $1.22 | $1.22 |
| 5,004+ | $1.16 | $1.16 |
| 10,008+ | $1.12 | $1.12 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 24 positions arranged in a 2 x 12 grid.
The pitch is 2.54mm (0.100").
The current rating is 1 A.
It is a through hole mount socket with solder termination.
