| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Card Type | |
| Connector Type | |
| Contact Finish | |
| Contact Resistance | |
| Ejector Side | |
| Features | |
| Height Above Board | |
| Insertion, Removal Method | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions | |
| Storage Temperature | |
| Tape & Reel | |
| Weight | |
| Withstanding Voltage |

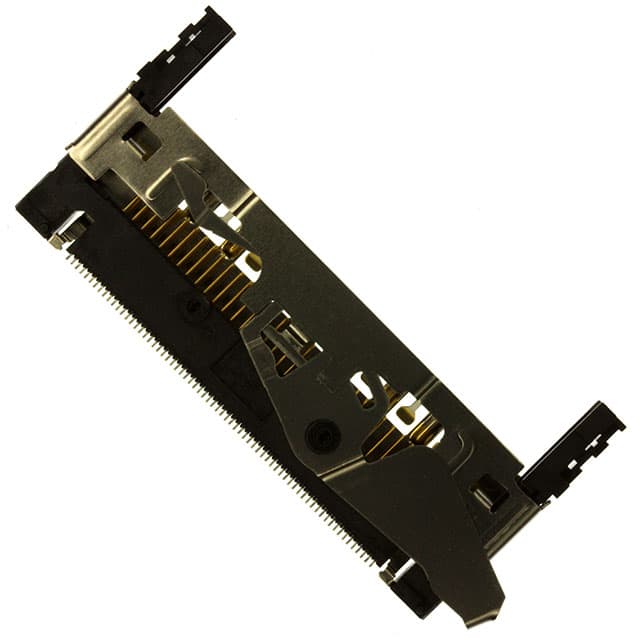

The Hirose Electric IC11S-PL-SF-EJR(71) is a PC Card Standard compliant connector designed for CardBus and Type I, II, and III PCMCIA cards. It features a push-push insertion and removal mechanism with the ejector located on the right side. The connector is surface mounted at a right angle and has a height above board of 5.59 mm, enabling thinner product designs.
This connector includes 68 positions with gold-plated contacts for reliable signal integrity. It incorporates board and card guides for secure alignment and features a grounding plate with 8 grounding contacts to meet high-speed signal requirements. The insulator material is PPS rated UL94V-0, and the connector weighs 12.7 g for the normal button type.
Designed for space-saving applications, the IC11S-PL-SF-EJR(71) supports standard top mounting and is suitable for use in laptops, embedded systems, and other devices requiring PCMCIA card connectivity. The right-angle orientation allows for low-profile integration on the PCB.
It is a PCMCIA connector with integrated ejector mechanism.
It supports PCMCIA CardBus, Type I, Type II, and Type III cards.
It has 68 positions.
It is surface mount with a right angle orientation.
The height above board is 5.59 mm.
The contact finish is gold.
It uses a push-push (push in, push out) method.
