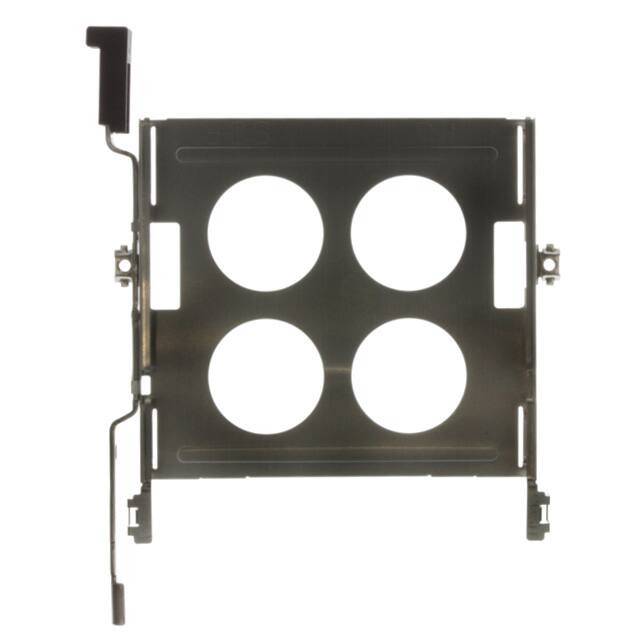

IC11S-BD-EJR PCMCIA CardBus Type I/II/III ejector connector with push-in/push-out operation. Surface mount, 5.6mm height, right-side ejector.
Mfr Part #:

IC11S-BD-EJR

Available from 1 distributors
Mfr Name: Hirose Electric
Hirose Electric
PCMCIA CardBus Type I/II/III ejector connector with push-in/push-out operation. Surface mount, 5.6mm height, right-side ejector.
✓ Total Stock: 3 pcs

IC11S-BD-EJR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
3 pcs
On Request
3 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

IC11S-BD-EJR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Card Type
Connector Type
Durability
Ejector Side
Height
Insertion, Removal Method
Mounting Feature
Mounting Type
Tape & Reel
Termination Style
Weight
Withstanding Voltage
View Similar Products (0)

IC11S-BD-EJR Description

Short technical summary and product information.

The Hirose Electric IC11S-BD-EJR is a single slot SMT connector for CardBus based PC cards, compliant with the PC Card Standard. It supports Type I, Type II, and Type III cards with a push-in/push-out ejection mechanism. The connector features a reduced height of 5.6mm, enabling thinner product designs, and a right-side eject button.



Electrical specifications include a minimum insulation resistance of 1000 MΩ and a maximum initial contact resistance of 60 mΩ. The connector is designed for durability with no electrical discontinuity of 100 ns or more during insertion/withdrawal and vibration testing. Withstanding voltage ensures no flashover or insulation breakdown under specified conditions.



The insulator is made of PPS (UL94V-0) and the contacts are phosphor bronze with gold plating on the contact section and solder plating on the lead section. The ground plate is stainless steel, providing reliable grounding with 8 grounding contacts. The connector weighs 12.7g for the normal button type.



Mounting is surface mount with a normal, standard-top mounting feature. The connector is available in various eject button options (rigid, foldering, pop-up) and can be positioned on the left or right side. Standoffs are optional for space utilization underneath the connector.

IC11S-BD-EJR Quick Information

Product Type: PC Card Socket
Series: IC11S
Canonical Name: Hirose Electric IC11S-BD-EJR PCMCIA CardBus Type I/II/III Ejector Connector
Subcategory: PCMCIA CardBus Connector

IC11S-BD-EJR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

IC11S-BD-EJR Features

  • Supports PCMCIA CardBus Type I/II/III cards.
  • Push-in/push-out ejection mechanism.
  • Surface mount with 5.6mm height.
  • Insulator material PPS rated UL94V-0.
  • Contact resistance max 60mΩ initial.

IC11S-BD-EJR Applications

  • Used in portable electronics requiring PC Card slots.
  • Ideal for CardBus card interfaces in laptops or embedded systems.
  • Suitable for Type I/II/III form factor cards.
  • Enables space-saving design in thin devices.

IC11S-BD-EJR FAQs

7 frequently asked questions generated from this part’s specifications.
What card types does the IC11S-BD-EJR support?

It supports PCMCIA - CardBus, Type I, Type II, and Type III cards.

What is the mounting type of this connector?

The mounting type is surface mount, with a normal, standard-top mounting feature.

What is the height of the IC11S-BD-EJR connector?

The connector height is 5.6 mm.

On which side is the ejector located?

The ejector is on the right side.

What is the insertion and removal method?

The method is push in and push out.

What is the insulation resistance of this connector?

The minimum insulation resistance is 1000 MΩ.

What is the initial contact resistance?

The maximum initial contact resistance is 60 mΩ.
