| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
177 pcs
|
177 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Reverse Recovery Time | |
| SVHC Present | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |
Infineon IAUS300N08S5N012ATMA1 is an N-channel enhancement mode MOSFET from the OptiMOS-5 family. It is designed for high current applications with a drain-source breakdown voltage of 80V and continuous drain current rating of 300A at 25°C case temperature.
Key electrical characteristics: Ultra-low drain-source on-state resistance of 1.2mOhm maximum at VGS=10V, ID=100A. Gate threshold voltage range 2.2V to 3.8V. Total gate charge 231nC maximum. Input capacitance 16250pF. Fast switching with turn-on delay 31ns, rise time 19ns, turn-off delay 69ns, fall time 55ns.

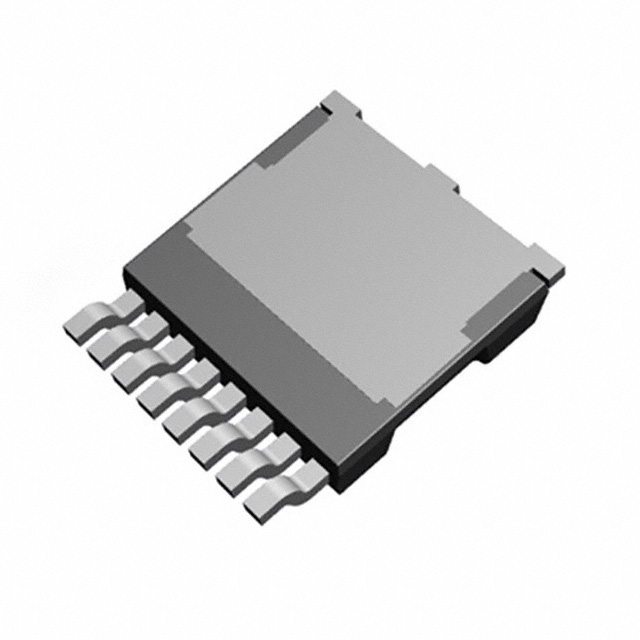

Package and thermal: Surface mount package PG-HSOG-8-1 (8-PowerSMD, Gull Wing). Maximum power dissipation 375W at 25°C case temperature. Thermal resistance junction-to-case 0.4K/W. Operating temperature range -55°C to 175°C. MSL1 up to 260°C peak reflow. RoHS compliant and AEC qualified.
Applications: Suitable for high current switching, automotive systems, power management, and DC-DC converters. The device is 100% avalanche tested with single pulse avalanche energy rating of 817mJ.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.65 | $6.65 |
| 10+ | $4.47 | $4.47 |
| 100+ | $3.23 | $3.23 |
| 500+ | $3.00 | $3.00 |
| 1,000+ | $2.80 | $2.80 |
| 1,800+ | $2.80 | $2.80 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The drain-source breakdown voltage is 80V minimum at VGS=0V, ID=1mA.
It comes in a surface mount PG-HSOG-8-1 package (8-PowerSMD, Gull Wing).
The operating temperature range is -55°C to 175°C (junction temperature).
Yes, it is RoHS3 compliant as stated in the datasheet.
The gate threshold voltage is 2.2V minimum, 3V typical, and 3.8V maximum at VDS=VGS, ID=275µA.
The maximum continuous drain current is 300A at TC=25°C with VGS=10V.
The typical on-resistance is 1.0mOhm, with a maximum of 1.2mOhm at VGS=10V, ID=100A.
