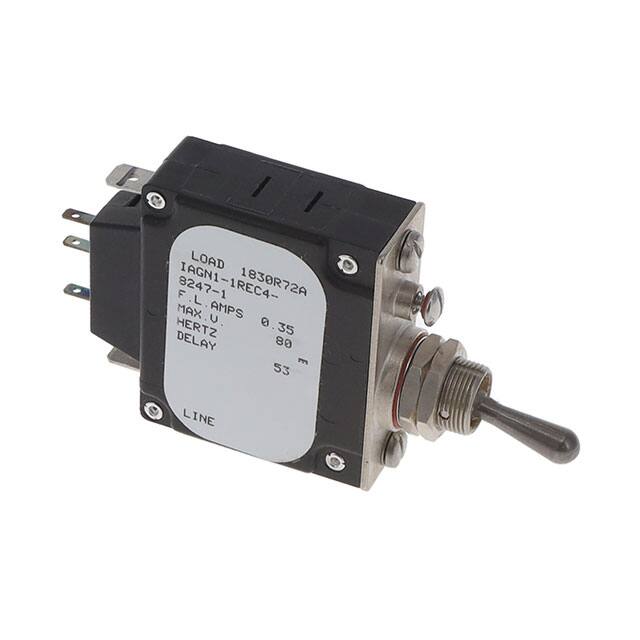

IAGN1-1REC4-8247-1 The Sensata IAGN1-1REC4-8247-1 is a magnetic hydraulic delay circuit breaker with a 350mA current rating and 250V voltage rating. It features a panel mount design and a toggle actuator.
Mfr Part #:

IAGN1-1REC4-8247-1

Mfr Name: Sensata
Sensata
The Sensata IAGN1-1REC4-8247-1 is a magnetic hydraulic delay circuit breaker with a 350mA current rating and 250V voltage rating. It features a panel mount design and a toggle actuator.
Stock on Request

IAGN1-1REC4-8247-1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Type
Breaker Type
Current Rating
Current Rating (Amps)
Illumination
Mounting Type
Number of Poles
SVHC Present
Voltage Rating
View Similar Products (0)

IAGN1-1REC4-8247-1 Description

Short technical summary and product information.

This Sensata IAGN1-1REC4-8247-1 is a single-pole circuit breaker designed for panel mounting. It utilizes a magnetic-hydraulic delay mechanism for protection.



The breaker has a current rating of 350mA and a voltage rating of 250V. The actuator type is a toggle, and it features no illumination. It is classified as a magnetic (hydraulic delay) breaker.



This component is suitable for applications requiring reliable overcurrent protection with specific delay characteristics. Its panel mount design facilitates integration into various electrical enclosures and systems.

IAGN1-1REC4-8247-1 Quick Information

Product Type: Circuit Breaker
Canonical Name: Sensata IAGN1-1REC4-8247-1 Magnetic Hydraulic Delay Circuit Breaker
Subcategory: Magnetic (Hydraulic Delay)

IAGN1-1REC4-8247-1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

IAGN1-1REC4-8247-1 Features

  • Panel mount magnetic hydraulic delay circuit breaker.
  • Rated for 350mA current.
  • Operates at 250V voltage.
  • Features a toggle actuator.
  • Single pole configuration.

IAGN1-1REC4-8247-1 Applications

  • Suitable for overcurrent protection.
  • Used in electrical enclosure systems.
  • Integrates into control panels.
  • Provides specific trip delay characteristics.

IAGN1-1REC4-8247-1 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the current rating of the IAGN1-1REC4-8247-1 circuit breaker?

The current rating is 350mA.

What is the voltage rating for this circuit breaker?

The voltage rating is 250V.

How is the IAGN1-1REC4-8247-1 circuit breaker mounted?

It is designed for panel mounting.

What type of breaker mechanism does the IAGN1-1REC4-8247-1 use?

It uses a magnetic (hydraulic delay) mechanism.

What is the RoHS status of this component?

It is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for this part?

The MSL is 1 Unlimited.
