| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,194 pcs
|
1194 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Storage Temperature | |
| Tape & Reel | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Weight | |
| Width |

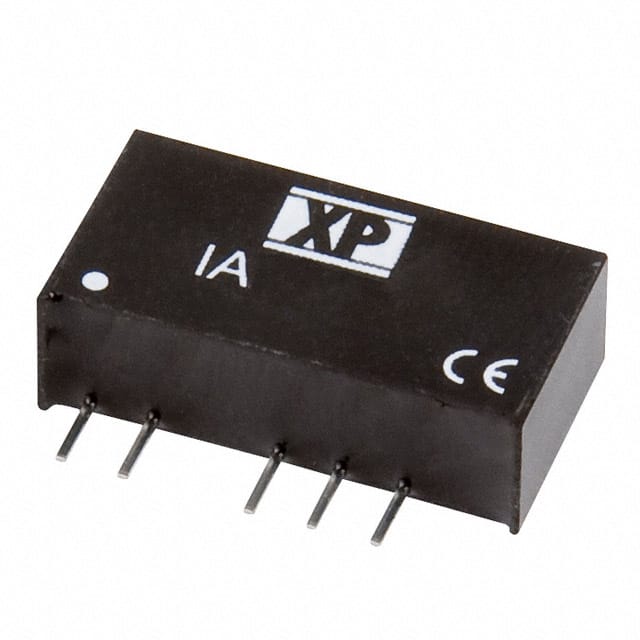

The XP Power IA4824S is a 1W isolated DC-DC converter designed for commercial ITE applications. It provides dual ±24V outputs at 21mA each, with an efficiency rated at 70% (low confidence). The converter features 1000VDC input-to-output isolation, a switching frequency of 80kHz, and ripple and noise of 75mV pk-pk. It operates over a temperature range of -40°C to 85°C and can be cooled by natural convection.
The IA4824S is housed in a compact 5-SIP through-hole package measuring 19.3mm x 6.1mm x 10.2mm and weighing 2.3g. The case is made of non-conductive black plastic with UL94V-0 rating, and the potting material is epoxy also UL94V-0 rated. The module supports wavesoldering up to 260°C for 10 seconds maximum.
Key electrical characteristics include line regulation of 1.2% for a 1% input voltage change, load regulation of ±10% (20 to 100% load), set accuracy of ±3.0%, and a temperature coefficient of 0.02%/°C. The maximum capacitive load is 100μF. The converter meets safety standard 62368-1 and has conducted emissions compliant with EN55032 Class A (Class B achievable with external components).
| Qty | Low | High |
|---|---|---|
| 20+ | $7.27 | $7.27 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The IA4824S provides dual ±24V outputs.
Each output can deliver 21mA.
The isolation voltage is 1000VDC.
The operating temperature range is -40°C to 85°C.
It comes in a 5-SIP Module with through-hole mounting.
RoHS3 compliant (unverified).
Efficiency is rated at 70% (low confidence).
