| Category | |
| Manufacturer Name | |
| Accessory Type | |
| Contact Termination | |
| For Use With | |
| Mounting Type | |
| SVHC Present |

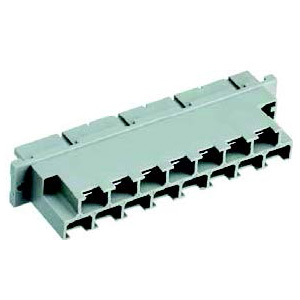

The Bel Power Solutions HZZ00114-G is a connector accessory specifically designed for use with cassette style converters. This component features solder pin terminations, with each pin measuring 10.1 mm in length and 1.6 mm in diameter. The contacts are 90° bent, facilitating specific mounting and connection configurations.
This connector is part of Bel Fuse's power solutions offerings, intended to complement their cassette style converter modules. The H15 connector series, to which this part belongs, is designed for power supply applications capable of handling high operating currents. The integrated code key system allows for multiple coding possibilities, enhancing system design flexibility.
Key specifications include its solder pin termination type, a pin length of 10.1 mm, and a pin diameter of 1.6 mm. The 90° bent contacts are a notable feature for integration into specific layouts. The accessory type is a connector, and it is intended for use with cassette style converters.
The HZZ00114-G is an H15 connector accessory designed for cassette style converters.
The HZZ00114-G connector features 10.1 mm solder pins with a 1.6 mm diameter and 90° bent contacts.
The HZZ00114-G is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) for the HZZ00114-G is 1 Unlimited.
Yes, the REACH status for the HZZ00114-G is REACH Unaffected.
