| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,000 pcs
|
6000 pcs | On Request | 1 | On Request | On Request | 1428+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Configuration | |
| Mounting Type | |
| Power Dissipation | |
| Working Voltage |

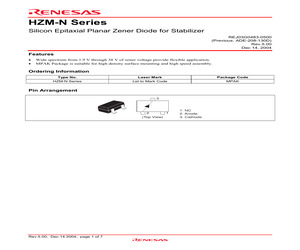

The REDISEM HZM3.3NB1TL-E is a single, unidirectional voltage regulator diode designed for surface mounting. It operates with a nominal working voltage of 3.3V and has a maximum power dissipation limit of 0.2W.
This diode is housed in an MPAk-3 package with gull wing terminals and a rectangular shape. The terminal finish is Tin Bismuth. It has 3 terminals in a dual terminal position configuration.
Key electrical characteristics include a working test current of 5mA and a reference voltage tolerance of up to 3.88%. The component is lead-free and RoHS3 compliant.
This part is suitable for applications requiring stable voltage regulation within its specified parameters. Its surface mount capability allows for integration into various electronic assemblies.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal working voltage is 3.3 V at a test current of 5 mA.
The maximum power dissipation is 200 mW.
The maximum reference voltage tolerance is ±3.88%.
It is a unidirectional zener diode.
It is available in a MPAK-3 surface-mount package with gull wing terminals.
The terminal finish is tin bismuth, which is lead-free.
The zener voltage is specified at a test current of 5 mA.
