| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,929 pcs
|
1929 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating (Max) | |
| DC Resistance (DCR) (Max) | |
| Filter Type | |
| Height (Max) | |
| Impedance @ Frequency | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Lines | |
| Operating Temperature | |
| SVHC Present | |
| Tape & Reel | |
| Width |

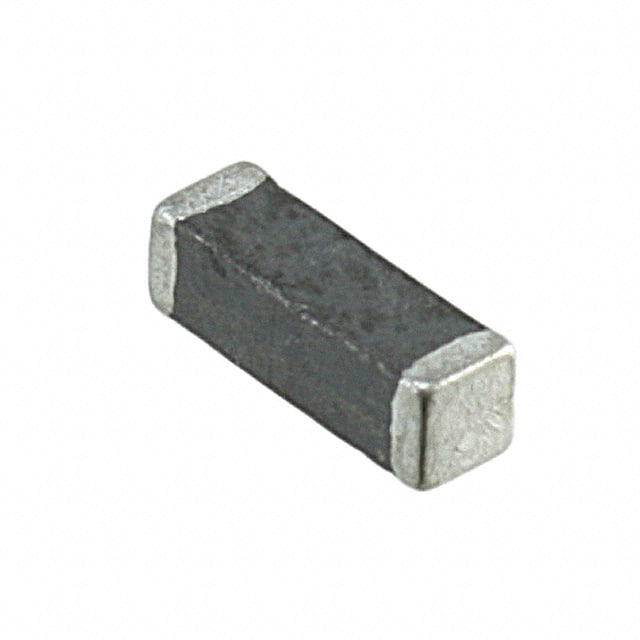

The HZ1806K102R-10 is a surface mount ferrite bead from Laird Technologies designed for power and signal line filtering applications. This single-line component offers a nominal impedance of 1 kOhm at 100 MHz, providing effective high-frequency noise suppression.
The ferrite bead is rated for a maximum continuous current of 1.5A with a maximum DC resistance of 150 milliohms, making it suitable for moderate current designs where low power loss is required. It operates over a wide temperature range from -40°C to 125°C.
Packaged in a standard 1806 (4516 Metric) surface mount case measuring 4.50mm x 1.60mm with a maximum height of 1.60mm, this component is compatible with automated assembly processes. The 1-line configuration targets single-conductor filtering needs in compact electronic assemblies.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.19 | $1.19 |
| 10+ | $0.82 | $0.82 |
| 25+ | $0.71 | $0.71 |
| 50+ | $0.63 | $0.63 |
| 100+ | $0.56 | $0.56 |
| 250+ | $0.47 | $0.47 |
| 500+ | $0.44 | $0.44 |
| 1,000+ | $0.40 | $0.40 |
| 2,000+ | $0.36 | $0.36 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal impedance is 1 kOhm at 100 MHz.
The maximum current rating is 1.5 A.
The maximum DC resistance is 150 milliohms.
It is packaged in a 1806 (4516 Metric) surface mount case.
The operating temperature range is -40°C to 125°C.
RoHS3 compliance is indicated but unverified.
Surface mount.
