HX7011C0050.000000 The HX7011C0050.000000 is a 50 MHz CMOS crystal oscillator (XO) from Diodes Incorporated. It operates at 3.3V with ±30 ppm frequency stability over -40 to +105°C and is AEC-Q200 qualified.
Mfr Part #:

HX7011C0050.000000

Available from 1 distributors
Mfr Name: Diodes Incorporated
Diodes Incorporated
The HX7011C0050.000000 is a 50 MHz CMOS crystal oscillator (XO) from Diodes Incorporated. It operates at 3.3V with ±30 ppm frequency stability over -40 to +105°C and is AEC-Q200 qualified.
✓ Total Stock: 50 pcs
$ Price Range: $1.19 - $1.58

HX7011C0050.000000 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
ADI/AAR OEM Supply ✓
Non-Authorised Inventory information
50 pcs
On Request
50 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

HX7011C0050.000000 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Base Resonator
Current
Frequency
Frequency Stability
Function
Height
Industrial Grade
Length
Military Grade
Mounting Type
Operating Temperature
Output
Ratings
SVHC Present
Storage Temperature
Tape & Reel
Termination Style
Type
Voltage
Width
View Similar Products (0)

HX7011C0050.000000 Description

Short technical summary and product information.

The HX7011C0050.000000 is a high-temperature CMOS crystal oscillator (XO) from Diodes Incorporated, part of the HX701 series. It delivers a 50 MHz output with CMOS logic levels and features a frequency stability of ±30 ppm over the full -40°C to +105°C temperature range.



This oscillator operates from a 3.3V supply voltage and provides an enable/disable function via pin 1 (OE). It offers low phase jitter of less than 1 ps RMS and a typical startup time of 10 ms. The device is AEC-Q200 Grade 1 qualified, making it suitable for automotive and harsh-environment applications.

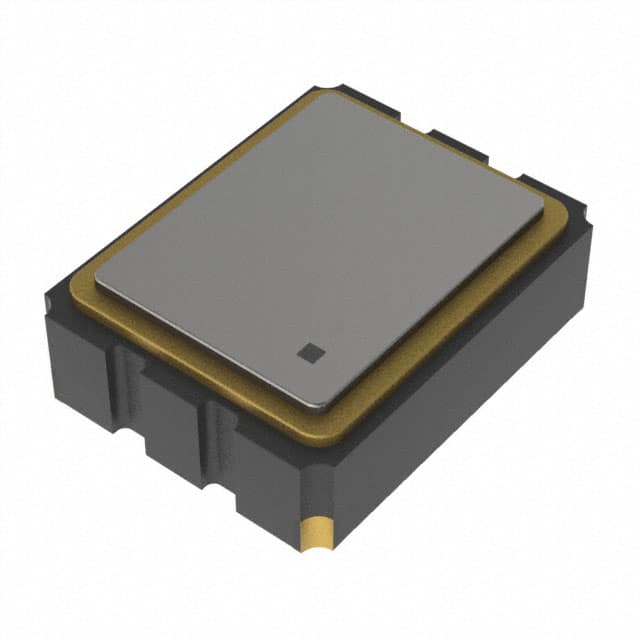

The HX7011C0050.000000 is housed in a 7.0 x 5.0 mm ceramic 4-SMD, No Lead package for surface mount assembly. It is Pb-free and RoHS3 compliant.

HX7011C0050.000000 Quick Information

Product Type: Crystal Oscillator (XO)
Series: HX701
Canonical Name: HX7011C0050.000000 - 50 MHz CMOS XO Oscillator, 3.3V, ±30 ppm, -40 to +105°C, AEC-Q200
Subcategory: CMOS Oscillator

HX7011C0050.000000 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Pb-free

HX7011C0050.000000 Estimated Pricing

Qty Low High
1+ $1.58 $1.58
10+ $1.38 $1.38
25+ $1.25 $1.25
100+ $1.19 $1.19
1,000+ $1.19 $1.19

Estimated market price range - modelled values for guidance only, not live distributor offers.

HX7011C0050.000000 Features

  • 50 MHz CMOS output oscillator.
  • ±30 ppm frequency stability over temperature.
  • AEC-Q200 Grade 1 qualified.
  • Low phase jitter under 1 ps RMS.
  • 3.3V supply with enable/disable function.

HX7011C0050.000000 Applications

  • Automotive electronic control units (ECUs).
  • Industrial and outdoor networking systems.
  • Storage and server clock generation.
  • Test and measurement equipment.

HX7011C0050.000000 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage of the HX7011C0050.000000?

The supply voltage is 3.3V.

What is the package type for this oscillator?

It comes in a 4-SMD, No Lead ceramic package measuring 7.0mm x 5.0mm x 1.55mm.

What is the operating temperature range?

The operating temperature range is -40°C to +105°C.

Is the HX7011C0050.000000 RoHS compliant?

Yes, it is RoHS3 compliant and Pb-free as verified in the datasheet.

What is the frequency stability of this oscillator?

The frequency stability is ±30 ppm over the -40°C to +105°C temperature range.

Does this oscillator have an enable/disable function?

Yes, it features an enable/disable function on pin 1 (OE).

Is this part qualified for automotive applications?

Yes, it is AEC-Q200 qualified (Grade 1).
