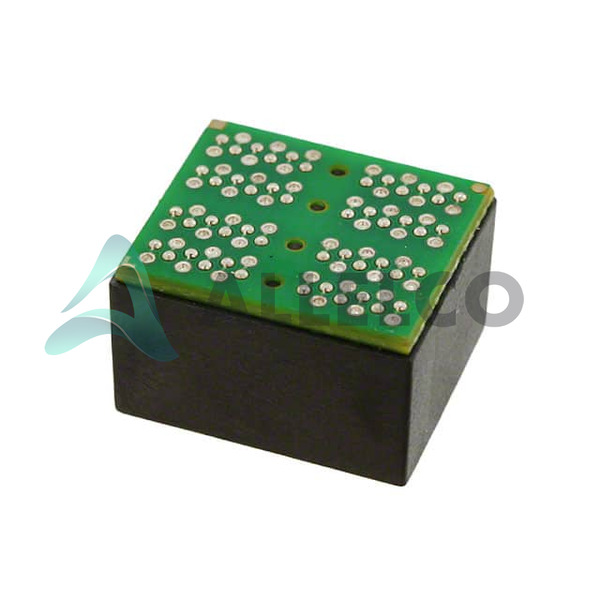

HX5400NL The Pulse Electronics HX5400NL is a Pulse Transformer featuring 350µH inductance and a Surface Mount package. It operates within a temperature range of -40°C to 85°C.
Mfr Part #:

HX5400NL

Available from 2 distributors
Mfr Name: Pulse Electronics
Pulse Electronics
The Pulse Electronics HX5400NL is a Pulse Transformer featuring 350µH inductance and a Surface Mount package. It operates within a temperature range of -40°C to 85°C.
✓ Total Stock: 37 pcs
$ Price Range: $3.00

HX5400NL Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
27 pcs
On Request
27 pcs On Request 1 On Request On Request On Request On Request On Request
RAD ✓
Non-Authorised Inventory information
10 pcs
On Request
10 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

HX5400NL Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Height
Inductance
Length
Mounting Type
Operating Temperature
Transformer Type
Turns Ratio
Width
View Similar Products (0)

HX5400NL Description

Short technical summary and product information.

The Pulse Electronics HX5400NL is a Pulse Transformer designed for various applications. It features a surface mountable design for easy integration into electronic circuits.



Key electrical specifications include an inductance of 350µH and a turns ratio of 1CT:1CT for both transmitter and receiver. The transformer is encapsulated, providing isolation and data interface capabilities. It operates within a temperature range of -40°C to 85°C.



Mechanically, the HX5400NL has dimensions of 28.45mm in length and 17.27mm in width, with a height of 11.12mm. Its robust construction and specified operating parameters make it suitable for demanding environments.



This component is classified under Pulse Transformers and is designed for reliable performance in power over Ethernet (PoE) Gigabit applications, as indicated by its description.

HX5400NL Quick Information

Product Type: Pulse Transformer
Canonical Name: Pulse Electronics HX5400NL Transformer
Subcategory: Pulse Transformer

HX5400NL Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

HX5400NL Estimated Pricing

Qty Low High
1+ $3.00 $3.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

HX5400NL Features

  • 350µH inductance for signal conditioning.
  • Surface mount design for PCB integration.
  • Operates from -40°C to 85°C.
  • Encapsulated for isolation and data interface.
  • Suitable for Gigabit PoE applications.

HX5400NL Applications

  • Ideal for Gigabit Ethernet circuits.
  • Used in Power over Ethernet systems.
  • Suitable for data interface applications.
  • Provides signal isolation in networks.
