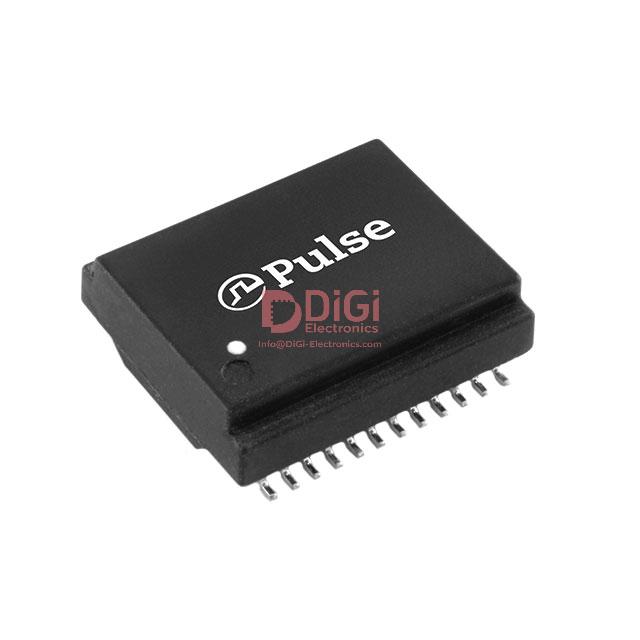

HX5062FNLT The Pulse Electronics HX5062FNLT is a pulse transformer designed for LAN 10/100/1000 Base-T applications. It features a 350µH inductance and a 1CT:1CT turns ratio.
Mfr Part #:

HX5062FNLT

Available from 2 distributors
Mfr Name: Pulse Electronics
Pulse Electronics
The Pulse Electronics HX5062FNLT is a pulse transformer designed for LAN 10/100/1000 Base-T applications. It features a 350µH inductance and a 1CT:1CT turns ratio.
✓ Total Stock: 1,180 pcs
$ Price Range: $3.00

HX5062FNLT Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
1,173 pcs
On Request
1173 pcs On Request 1 On Request On Request 1829+ On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
7 pcs
On Request
7 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

HX5062FNLT Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Height
Inductance
Length
Mounting Type
Operating Temperature
Transformer Type
Turns Ratio
Width
View Similar Products (0)

HX5062FNLT Description

Short technical summary and product information.

This Pulse Electronics HX5062FNLT is a surface-mount pulse transformer suitable for networking applications. It offers a 350µH inductance and a 1CT:1CT turns ratio for both transmitter and receiver functions.



The transformer is designed for LAN 10/100/1000 Base-T connectivity, making it a versatile component for network interface cards, routers, and switches. Its compact dimensions of 17.50mm x 15.24mm and a height of 5.72mm allow for integration into space-constrained designs.



Operating within a temperature range of -40°C to 85°C, the HX5062FNLT is built to withstand various environmental conditions. The component is supplied in Cut Tape (CT) & Digi-Reel® packaging, suitable for automated assembly processes.

HX5062FNLT Quick Information

Product Type: Pulse Transformer
Canonical Name: Pulse Electronics HX5062FNLT Pulse Transformer
Subcategory: Pulse Transformer

HX5062FNLT Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

HX5062FNLT Estimated Pricing

Qty Low High
1+ $3.00 $3.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

HX5062FNLT Features

  • 350µH inductance for signal integrity.
  • 1CT:1CT turns ratio for TX/RX.
  • Supports LAN 10/100/1000 Base-T.
  • Surface mount for automated assembly.
  • Operates from -40°C to 85°C.

HX5062FNLT Applications

  • Ideal for Ethernet network interfaces.
  • Used in routers and network switches.
  • Suitable for 10/100/1000 Base-T systems.
  • Facilitates reliable signal transmission.

HX5062FNLT FAQs

6 frequently asked questions generated from this part’s specifications.
What is the inductance of the HX5062FNLT transformer?

The inductance of the HX5062FNLT transformer is 350µH.

What is the turns ratio for the HX5062FNLT transformer?

The turns ratio for the HX5062FNLT transformer is 1CT:1CT for both transmitter and receiver.

What type of LAN does the HX5062FNLT transformer support?

The HX5062FNLT transformer supports LAN 10/100/1000 Base-T.

What is the operating temperature range for the HX5062FNLT?

The HX5062FNLT operates within a temperature range of -40°C to 85°C.

What are the dimensions of the HX5062FNLT transformer?

The HX5062FNLT transformer measures 17.50mm in length, 15.24mm in width, and has a height of 5.72mm.

How is the HX5062FNLT transformer packaged?

The HX5062FNLT transformer is packaged in Cut Tape (CT) & Digi-Reel®.
