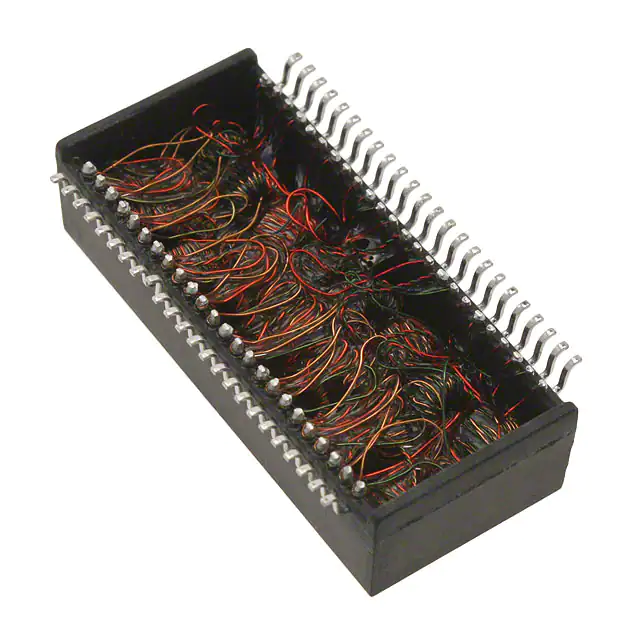

HX5014NL The Pulse Electronics HX5014NL is a LAN 1000 Base-T pulse transformer designed for surface mount applications. It features a 1CT:1CT turns ratio and operates within a temperature range of -40°C to 85°C.
Mfr Part #:

HX5014NL

Available from 1 distributors
Mfr Name: Pulse Electronics
Pulse Electronics
The Pulse Electronics HX5014NL is a LAN 1000 Base-T pulse transformer designed for surface mount applications. It features a 1CT:1CT turns ratio and operates within a temperature range of -40°C to 85°C.
✓ Total Stock: 4 pcs
$ Price Range: $3.00

HX5014NL Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
4 pcs
On Request
4 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

HX5014NL Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Height
Length
Mounting Type
Operating Temperature
Storage Temperature
Tape & Reel
Transformer Type
Turns Ratio
Weight
Width
View Similar Products (0)

HX5014NL Description

Short technical summary and product information.

This Pulse Electronics HX5014NL is a pulse transformer specifically designed for LAN 1000 Base-T applications. It features a 1CT:1CT turns ratio, making it suitable for specific signal isolation and impedance matching needs in networking equipment.



The transformer is designed for surface mount technology, offering convenient integration into printed circuit boards. Its physical dimensions are 27.81mm in length, 12.19mm in width, and a seated height of 7.49mm. The operating temperature range is specified from -40°C to 85°C, ensuring reliable performance in various environmental conditions.



Compliance information indicates RoHS3 compliance, REACH unaffected status, and an MSL of 1 Unlimited. The component is classified under HTSUS code 8504.31.2000.

HX5014NL Quick Information

Product Type: Pulse Transformer
Canonical Name: Pulse Electronics HX5014NL LAN 1000 Base-T Pulse Transformer
Subcategory: Pulse Transformer

HX5014NL Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

HX5014NL Estimated Pricing

Qty Low High
1+ $3.00 $3.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

HX5014NL Features

  • LAN 1000 Base-T transformer type.
  • Surface mount package for PCB integration.
  • 1CT:1CT turns ratio specified.
  • Wide operating temperature range.
  • RoHS3 compliant.

HX5014NL Applications

  • Used in Ethernet network interface cards
  • Suitable for high-speed data transmission circuits
  • Provides electrical isolation in communication systems
  • Ideal for compact electronic device designs

HX5014NL FAQs

6 frequently asked questions generated from this part’s specifications.
What is the transformer type for the HX5014NL?

The transformer type is LAN 1000 Base-T.

What is the turns ratio of the HX5014NL?

The turns ratio is 1CT:1CT.

What is the operating temperature range for this transformer?

The operating temperature range is -40°C to 85°C.

What is the mounting type for the HX5014NL?

The mounting type is Surface Mount.

Is the HX5014NL RoHS compliant?

The HX5014NL is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for the HX5014NL?

The Moisture Sensitivity Level is 1 Unlimited.
