| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,850 pcs
|
1850 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Height | |
| Inductance | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Transformer Type | |
| Turns Ratio | |
| Width |

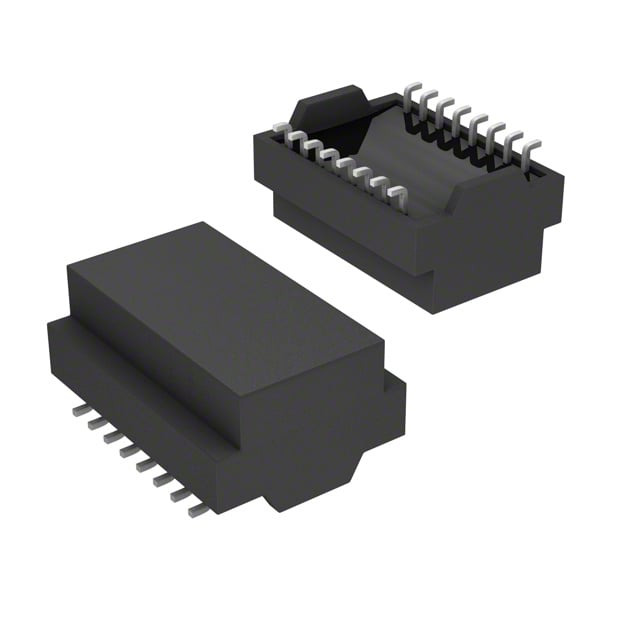

The Pulse Electronics HX2326FNLT is a pulse transformer suitable for various electronic circuits. It offers a turns ratio of 1CT:1CT for both transmitter and receiver.
Key electrical specifications include inductance values of 120µH and 350µH, and it is designed for LAN 10/100 Base-T applications. The transformer operates within a temperature range of -40°C to 85°C.
Mechanically, the HX2326FNLT is designed for surface mounting. Its dimensions are 12.70mm in length and 9.09mm in width, with a seated height of 5.99mm. The component is compliant with RoHS standards and has a Moisture Sensitivity Level of 1.
This pulse transformer is a component within the broader category of transformers, specifically pulse transformers, and is manufactured by Pulse Electronics.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.00 | $3.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range for the HX2326FNLT is -40°C to 85°C.
The HX2326FNLT has a surface mount type.
The inductance values for the HX2326FNLT are 120µH and 350µH.
The transformer type is LAN 10/100 Base-T.
The turns ratio is 1CT:1CT Transmitter, 1CT:1CT Receiver.
The dimensions are 12.70mm in length and 9.09mm in width, with a height of 5.99mm.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
