| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,000 pcs
|
4000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Frequency | |
| Frequency Stability | |
| Frequency Tolerance | |
| Height | |
| Impedance | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Storage Temperature | |
| Tape & Reel | |
| Type | |
| Width | |
| Withstanding Voltage |

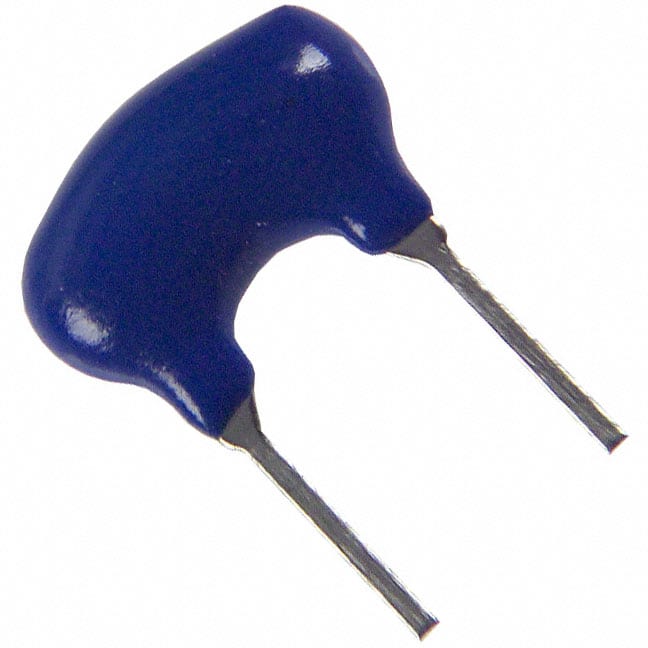

The HWZT-6.00MD is a 6 MHz leaded ceramic resonator from Abracon LLC's HWZT-MD series. It offers a frequency tolerance of ±0.5% and frequency stability of ±0.3% over the operating temperature range of -25°C to +85°C. The resonant impedance is 30 Ω maximum, and the typical load capacitance is 30 pF.
This resonator is designed for clock oscillation in microcontrollers and other digital circuits. It features low resonant impedance and a small, lightweight radial package measuring 10.00mm x 5.00mm with a height of 5.50mm. The rated DC voltage is 6 V, and the rated AC voltage is 15 V p-p.
The part is mounted through-hole with a 5.00mm lead pitch and is RoHS compliant with a lead exemption. It is suitable for applications such as telephones and household electronic appliances.
| Qty | Low | High |
|---|---|---|
| 1,000+ | $0.16 | $0.16 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The HWZT-6.00MD operates at 6 MHz.
The frequency tolerance is ±0.5%.
The operating temperature range is -25°C to +85°C.
Yes, it is RoHS compliant with a lead exemption (7c-I).
The package is a through-hole radial with 2 leads and 5.00mm lead spacing.
The maximum resonant impedance is 30 Ω.
