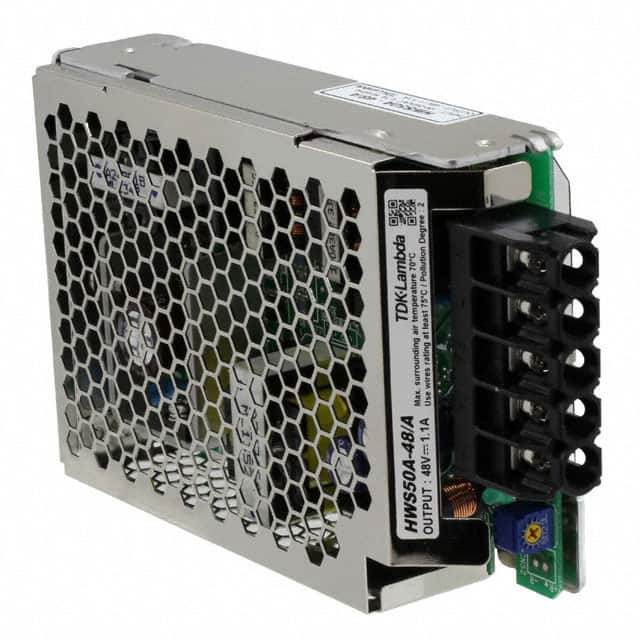

The TDK Corporation HWS50A-48/A is an enclosed AC/DC power supply converter designed for industrial and ITE commercial applications. It delivers a 50W output power with a single output voltage of 48V and a current rating of 1.1A.
Key electrical specifications include an efficiency of 85% and an isolation voltage of 3kV. The converter features adjustable output and universal input capabilities, making it versatile for various power needs. It operates within a temperature range of -10°C to 70°C with derating.
Mechanically, the unit is designed for chassis mounting and has dimensions of 119.9mm in length, 26.4mm in width, and 82.0mm in height. It is CE approved and compliant with RoHS3 standards.
The operating temperature range is -10°C to 70°C with derating.
The device measures 119.9 mm (length) x 26.4 mm (width) x 82.0 mm (height).
It uses chassis mount.
Efficiency is rated at 85%.
It has a single output.
Isolation voltage is 3 kV.
It is CE approved.
